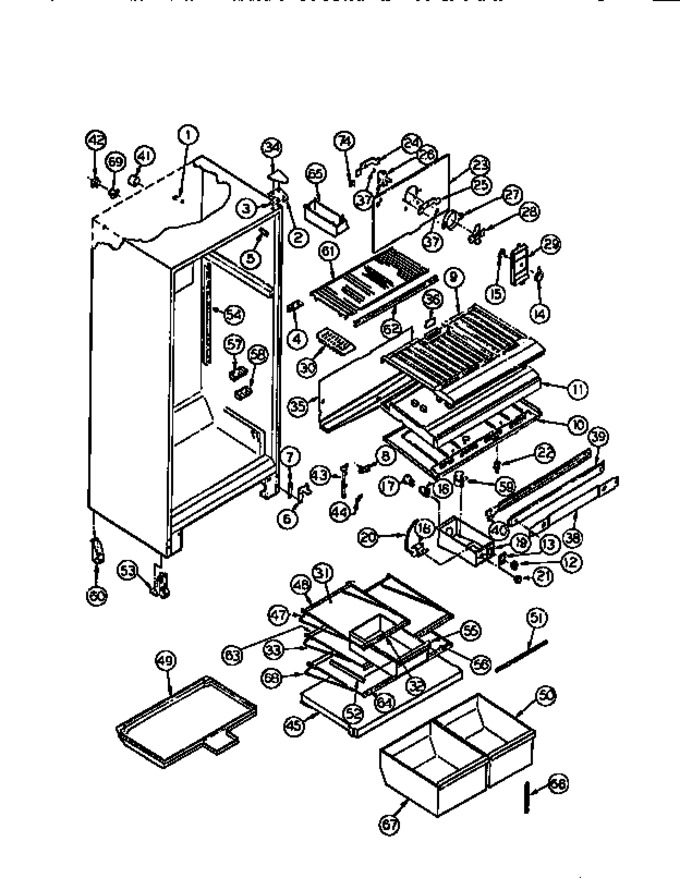

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
61	G177059-09		Shelf - Freezer		Appelez-nous	-
63	G172436-14		Trim, Rear		Appelez-nous	-
64	G172410-07		Trim, Snap On		Appelez-nous	-
65	G163022-03		Container, Ice		Appelez-nous	-
66	G166310-02		Support, Crisper Cover		Appelez-nous	-
67	G490015-37		Pan, Crisper		Appelez-nous	-
68	G171608-15		Frame, Cantilever Shelf		Appelez-nous	-
69	G174733		Ferrule, Inner		Appelez-nous	-
74	G164571		Bracket, Connector		Appelez-nous	-
*24040	G183584		Cover, Wiring		Appelez-nous	-
*24041	G186765		Service Data Sheet		Appelez-nous	-
*24042	G162659		Button, Plug Ice Maker And Freezer Shelf Mtg. Holes (4)		Appelez-nous	-
*24043	G162827-12		Button, Decorative Plug		Appelez-nous	-
*24044	G174813		Harness, Wiring		Appelez-nous	-
*24045	G162892-01		Button, Plug (liner Holes) (2)		Appelez-nous	-
*24046	G185324		Book, Instruction		Appelez-nous	-
*24047	G183100-54		Label, Energy Guide		Appelez-nous	-
*24048	G490004-02		Base, Cabinet		Appelez-nous	-
61A	G166495-01		Cap Protector (2)		Appelez-nous	-
63A	G172436-18		Trim, Snap On Rear		Appelez-nous	-
74A	G162585		Screw		Appelez-nous	-
