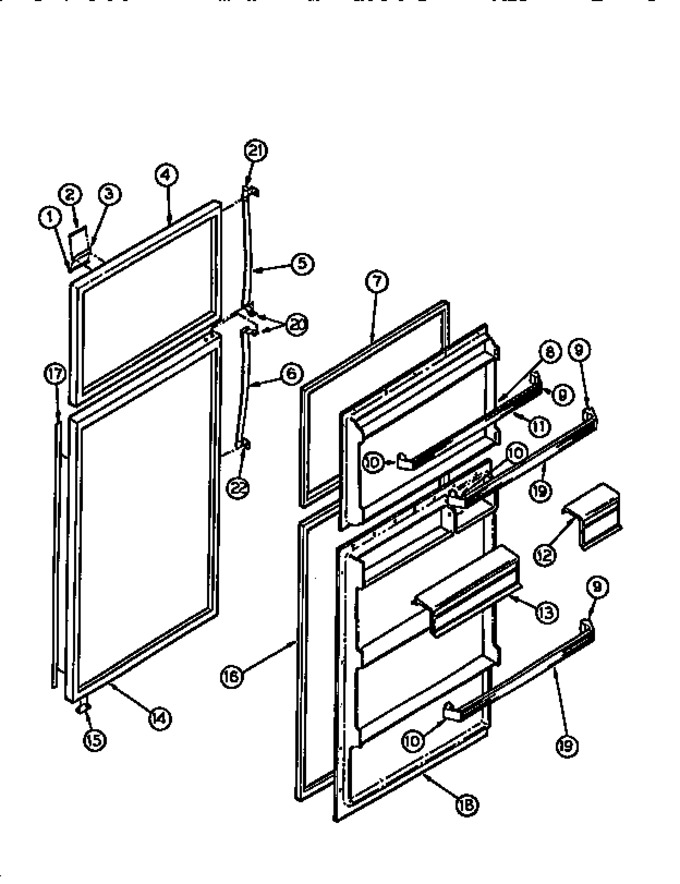

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G175393-01		Label, Nameplate, Lower		Appelez-nous	-
2	G175118-02		Lable, Nameplate, Upper		Appelez-nous	-
3	G175117-02		Nameplate		Appelez-nous	-
4	G178690		Panel, Exterior Door, Textured (not Illustrated)		Appelez-nous	-
5	G170495-24		Handle, Freezer Door		Appelez-nous	-
6	G170495-24		Handle, Refrigerator Door		Appelez-nous	-
7	G186932-12		Gasket, Freezer Door		Appelez-nous	-
8	G184903-01		Panel, Interior Door		Appelez-nous	-
9	G152888-04		Support, Rh Door Racks (4)		Appelez-nous	-
10	G152887-04		Support, Lh Door Racks (4)		Appelez-nous	-
11	G162887-23		Rack, Freezer (2)		Appelez-nous	-
12	G178500-21		Door, Dairy		Appelez-nous	-
13	G178500-21		Door, Dairy		Appelez-nous	-
14	G178694		Panel, Exterior Door, Textured (not Illustrated)		Appelez-nous	-
15	G155072		Stop, Door (2)		Appelez-nous	-
16	G186932-13		Gasket, Refrig. Door		Appelez-nous	-
17	G167150-12		Trim, Refrig. Door Side		Appelez-nous	-
18	G184896-01		Panel, Interior Door		Appelez-nous	-
19	G162887-22		Rack, Refrigerator (2)		Appelez-nous	-
20	G170507-01		End, Handle (2)		Appelez-nous	-
21	G179800		Handle End-top		Appelez-nous	-
22	G179801		Handle End-bottom		Appelez-nous	-
*24052	G168981-01		Kit, Door Conversion		Appelez-nous	-
*24053	G162977-01		Button Plug-white		Appelez-nous	-
*24054	G169332-01		Button Plug, White		Appelez-nous	-
14A	G183138		Bearing, Hinge (4)		Appelez-nous	-
18A	G162585		Screw		Appelez-nous	-
3A	G141624-04		Tape, Frame To Door		Appelez-nous	-
4A	G183138		Bearing, Hinge (4)		Appelez-nous	-
6A	G185566		Screw		Appelez-nous	-
8A	G162585		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
