SELECT A DIAGRAM
01 - Ice Maker Installation
02 - Ice Maker
07 - Door Parts
08 - Cabinet Parts
09 - Cabinet Parts
10 - Cabinet Parts
11 - System & Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:

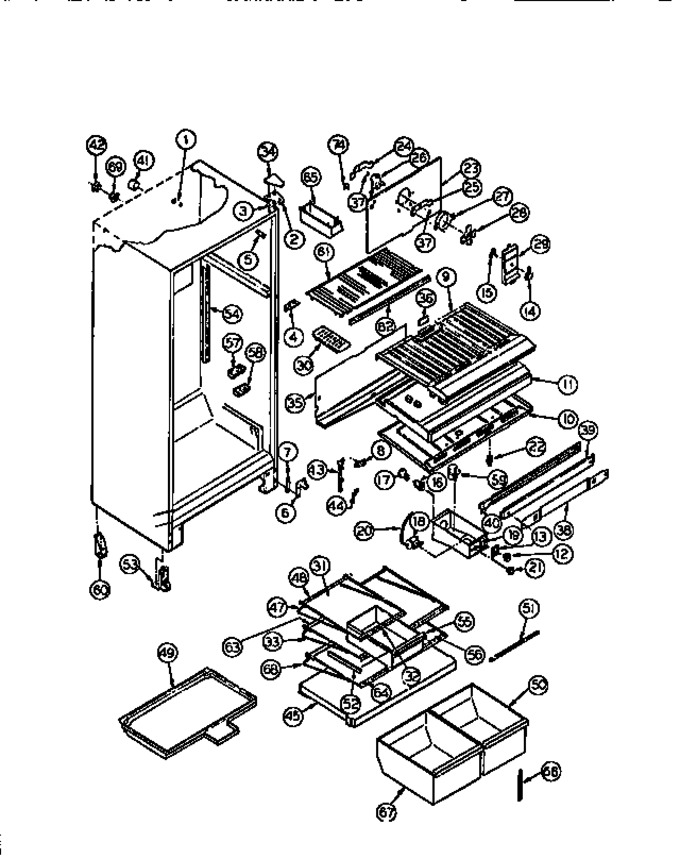

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 27 | G167217 | Ring, Fan Orifice |
|
- | |||||
| 28 | G174705 | Fan |
|
- | |||||
| 29 | G163061-76 | Cover, Fan |
|
- | |||||
| 30 | G156376-13 | Tray, Ice (2) |
|
- | |||||
| 31 | G171654-51 | Glass, Cantilever Shelf (3) |
|
- | |||||
| 32 | G172410-17 | Trim, Snap On (2) |
|
- | |||||
| 33 | G171608-14 | Frame, Cantilever Shelves (2) |
|
- | |||||
| 34 | G183558-01 | Cover, Top Hinge (not Illustrated) |
|
- | |||||
| 35 | G177534 | Trough Drain |
|
- | |||||
| 36 | G168866 | Pad Foam |
|
- | |||||
| 37 | G157666 | Bushing-motor Mtg (2) |
|
- | |||||
| 38 | G490087 | Strap, Mullion Mtg |
|
- | |||||
| 39 | G180373 | Mullion (not Illustrated) |
|
- | |||||
| 40 | G177254 | Heater, Mullion |
|
- | |||||
| 41 | G85642 | Tube, In Ferrule (2) |
|
- | |||||
| 42 | G174734 | Ferrule Outer |
|
- | |||||
| 43 | G184920-01 | Tube, Drain |
|
- | |||||
| 44 | G101747 | Clamp |
|
- | |||||
| 45 | G490064-01 | Cover, Crisper |
|
- | |||||
| 47 | G175878-07 | Frame, Meat Shelf |
|
- | |||||
| 48 | G172436-13 | Trim, Meat Shelf Rear |
|
- | |||||
| 49 | G184716 | Pan, Defrost |
|
- | |||||
| 50 | G176639-19 | Pan Crisper (fresh Fruit) |
|
- | |||||
| 51 | G180108-04 | Gasket, Crisper |
|
- | |||||
| 52 | G174365-03 | Hanger, Meat Pan, Lh |
|
- | |||||
| 53 | G177021 | Roller Assembly, Front (2) |
|
- | |||||
| 54 | G170695 | Channel, Shelf (2) |
|
- | |||||
| 55 | G176918-13 | Pan, Meat |
|
- | |||||
| 56 | G171654-52 | Glass Cantilever Shelf |
|
- | |||||
| 57 | G162178 | Cover, Air Deflector |
|
- | |||||
| 58 | G162675 | Deflector Air |
|
- | |||||
| 59 | G174820 | Timer |
|
- | |||||
| 60 | G183407 | Roller Assembly, Rear (2) |
|
- | |||||
| 27A | G167542 | Nut, Orifice (2) |
|
- | |||||
| 29A | G186232 | Label, Fan Cover |
|
- | |||||
| 44A | G166263 | Screw, 8, 32 X 1/2 (2) |
|
- | |||||
| 52A | G174366-03 | Hanger, Meat Pan, Rh |
|
- | |||||
| 52B | G166263 | Screw, Hanger (2) |
|
- | |||||
| 54A | G166567 | Screw, Channel To Liner (6) |
|
- | |||||
| 54B | G175612 | Center Channel, Shelf Mtg. |
|
- | |||||
| 59A | G105289 | Screw |
|
- | |||||
| 60A | G162662 | Nut, 1/4 Speed (2) |
|
- |
