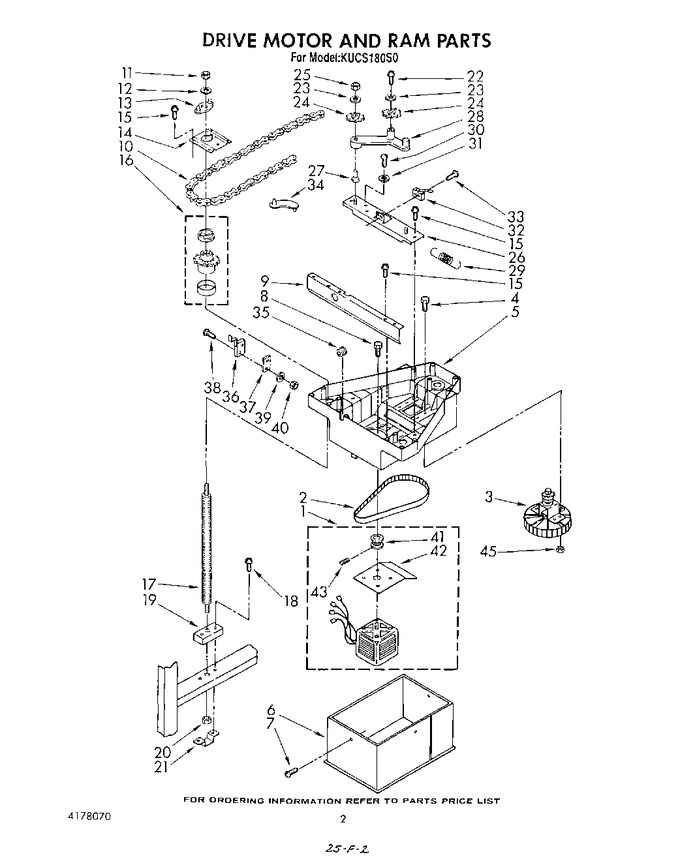

02 - Drive Motor And Ram , Lit/optional


03 - Frame


04 - Container


05 - Cabinet And Control


06 - Accessory


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4161772		Motor, Drive		Appelez-nous	-
2	4161013		Belt, Drive		Appelez-nous	-
3	4161299		Sprocket, Driven		Appelez-nous	-
4	4178065		Screw, 1/4 20 X 2`` (4)		Appelez-nous	-
5	4161268		Ram, Top		Appelez-nous	-
6	4163107		Ram, Bottom		Appelez-nous	-
7	4159414		Screw, 8-18 X 1/2 (4)		Appelez-nous	-
8	4159303		Screw, 5/16-18 X 1/2 (4)		Appelez-nous	-
9	4161212		Brace, Top		Appelez-nous	-
10	4160983		Chain, Drive		Appelez-nous	-
11	4159084		Nut, 5/16-18 (3)		Appelez-nous	-
12	WP3388703		Washer (3)   (Replaces: 4159525)				$ 6.72
13	4161041		Stop, Ram Upper		Appelez-nous	-
14	4161002		Plate, Powerscrew Cover (right Side)		Appelez-nous	-
14	4161271		Plate, Powerscrew Cover (rear)		Appelez-nous	-
14	4161003		Plate, Powerscrew Cover (left Side)		Appelez-nous	-
15	WPW10001180		Screw, 10-24 X 1/2   (Replaces: 4159416)				$ 7.23
16	4161449		Sprocket, Powerscrew (3)		Appelez-nous	-
17	4160988		Powerscrew (3)		Appelez-nous	-
18	4162027		Screw, 1/4-20 X 7/16		Appelez-nous	-
19	4162026		Stop, Ram Lower (3)		Appelez-nous	-
20	4161394		Nut (3)		Appelez-nous	-
21	4161390		Retainer, Nut (3)		Appelez-nous	-
22	4159364		Screw, 8 X 5/16 (2)		Appelez-nous	-
23	W11089212		Washer (4)   (Replaces: 4159590)				$ 8.70
24	4161121		Sprocket, Idler (4)		Appelez-nous	-
25	WP776338		Nut, 10-32 (2)   (Replaces: 4159105)				$ 17.42
26	4178066		Plate, Idler		Appelez-nous	-
27	4161124		Bushing (2)		Appelez-nous	-
28	4161123		Arm, Idler (right Side)		Appelez-nous	-
28	4161122		Arm, Idler (left Side)		Appelez-nous	-
29	4161133		Spring, Chain Tension		Appelez-nous	-
30	4159388		Screw, 10 X 1/2		Appelez-nous	-
31	4159494		Washer		Appelez-nous	-
32	4161012		Switch, Directional		Appelez-nous	-
33	4159353		Screw, 6-32 X 7/8 (2)		Appelez-nous	-
34	4160064		Retainer, Wire		Appelez-nous	-
35	4178044		Grommet, Wiring		Appelez-nous	-
36	4161250		Switch, Ram Stop		Appelez-nous	-
37	4161165		Baffle, Switch		Appelez-nous	-
38	4159268		Screw, 4-40 X 5/8 (2)		Appelez-nous	-
39	4159495		Washer		Appelez-nous	-
40	4159104		Nut		Appelez-nous	-
41	4161485		Gear, Drive		Appelez-nous	-
42	4162409		Deflector, Debris		Appelez-nous	-
43	4159154		Pin, Gear		Appelez-nous	-
45	4159106		Nut, Lock		Appelez-nous	-
	LIT4177823		Instructions, Installation (built-in Application)		Appelez-nous	-
	LIT4178070		List, Repair Parts		Appelez-nous	-
	LIT4178069		Instructions, Installation (front Panel)		Appelez-nous	-
	LIT4178068		Diagram, Wiring		Appelez-nous	-
