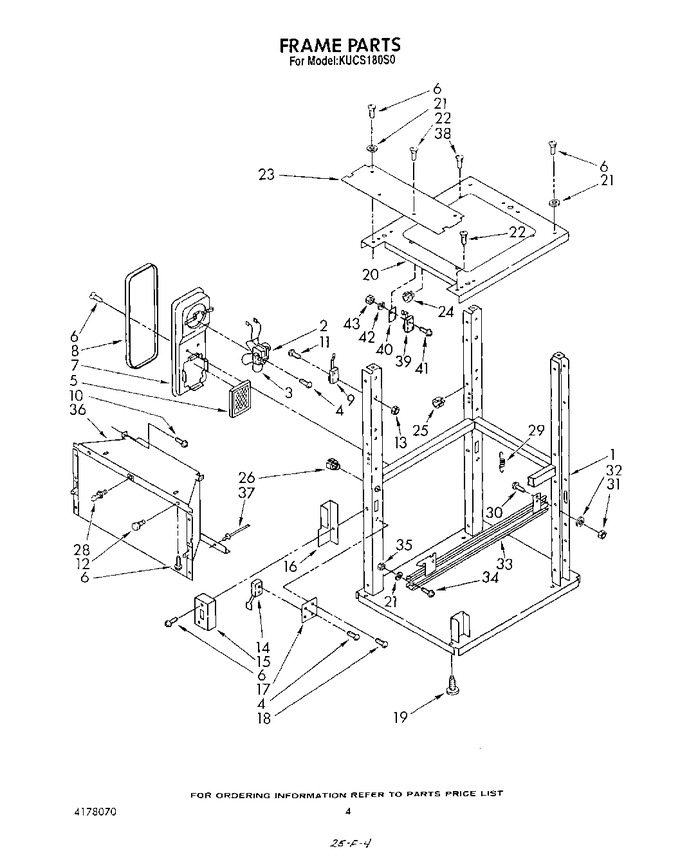

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Frame (not A Serviceable Part)		Appelez-nous	-
2	4162329		Motor, Fan		Appelez-nous	-
3	4161698		Blade, Fan		Appelez-nous	-
4	4159353		Screw, 6-32 X 7/8 (2)		Appelez-nous	-
5	4161136		Filter, Air				$ 17.57
6	4159388		Screw, 10 X 1/2 (4)		Appelez-nous	-
7	4161546		Housing, Filter		Appelez-nous	-
8	4161673		Gasket, Housing		Appelez-nous	-
9	4161216		Switch, Ram Stop		Appelez-nous	-
10	WPW10001180		Screw, 10-24 X 1/2   (Replaces: 4159416)				$ 7.23
11	4178067		Screw, 6-32 X 1`` (2)		Appelez-nous	-
12	4159983		Bumper, Door (2)		Appelez-nous	-
13	4159104		Nut, 6-32 (2)		Appelez-nous	-
14	4162252		Switch, Drawer		Appelez-nous	-
15	4162253		Block		Appelez-nous	-
16	4162571		Barrier		Appelez-nous	-
17	4162310		Bracket		Appelez-nous	-
18	WP3390631		Screw, 10 X 3/8   (Replaces: 4159184)				$ 7.04
19	4161363		Foot, Leveling (4)		Appelez-nous	-
20	4161346		Plate, Frame Cover		Appelez-nous	-
21	4159494		Washer		Appelez-nous	-
22	4159356		Screw, 6 X 3/8 (2)		Appelez-nous	-
23	4161102		Plate, Top Front		Appelez-nous	-
24	4178050		Bushing		Appelez-nous	-
25	4159023		Strain Releif		Appelez-nous	-
26	4159031		Bushing		Appelez-nous	-
27	4162616		Bin, Litter		Appelez-nous	-
28	4162660		Strike, Door   (Replaces: 4162025)				$ 82.99
29	4160982		Spring, Track (4)		Appelez-nous	-
30	4161134		Screw, 1/4-20 X 3/8 (4)		Appelez-nous	-
31	4159106		Nut, 1/4-20 (4)		Appelez-nous	-
32	4159554		Washer (4)		Appelez-nous	-
33	4162020		Track, Container (left Side)		Appelez-nous	-
33	4162021		Track, Container (right Side)		Appelez-nous	-
34	4159305		Screw, 10-32 X 3/8 (2)		Appelez-nous	-
35	WP776338		Nut, 10-32 (2)   (Replaces: 4159105)				$ 17.42
36	4162616		Bin, Litter		Appelez-nous	-
37	4160411		Rivet		Appelez-nous	-
38	4159384		Screw, No. 6 X 3/8		Appelez-nous	-
39	4161250		Switch, Limit		Appelez-nous	-
40	4161165		Baffle		Appelez-nous	-
41	4159268		Screw, 4-40 X 5/8		Appelez-nous	-
42	4159495		Washer, Lock		Appelez-nous	-
43	4159069		Nut		Appelez-nous	-
