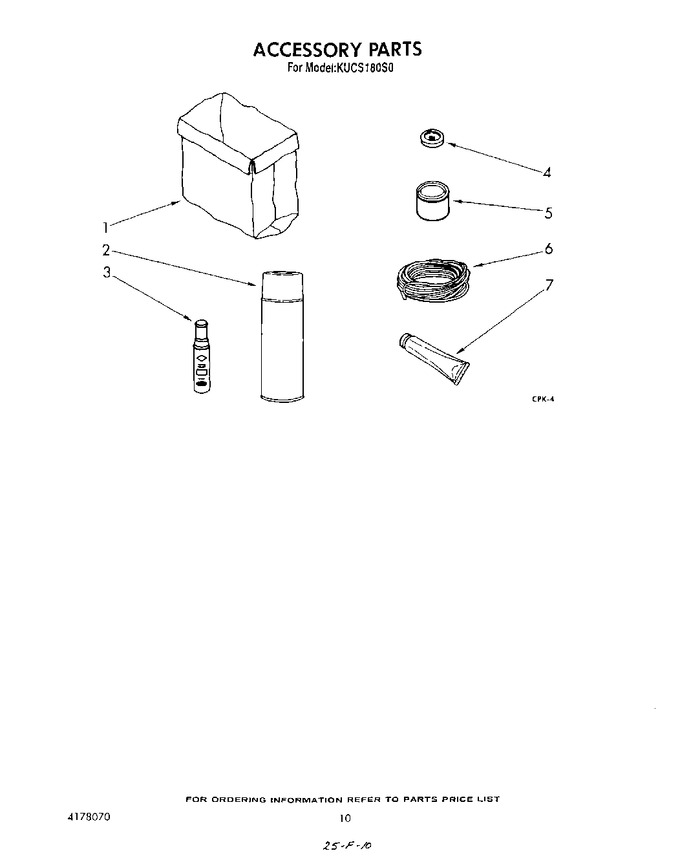

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10165293RB		Bag, Trash (18`` Plastic) (60 Bags)   (Replaces: 4178058)			Immediately	$ 90.10
1	4163345		Bag, Trash (18`` Plastic) (12 Boxes Of 15 Pack)		Appelez-nous	-
1	4163347		Bag, Trash (18`` Plastic) (1 Box Of 15 Pack)		Appelez-nous	-
2	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
2	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
2	978726		Paint, Spray 13 Oz. (stanford Brown)		Appelez-nous	-
2	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
2	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
2	261888		Paint, Spray 13 Oz. (avocado)		Appelez-nous	-
2	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
2	261886		Paint, Spray 13 Oz. (coffee)		Appelez-nous	-
2	261890		Paint, Spray 13 Oz. (harvest Gold)		Appelez-nous	-
2	675167		Paint, Spray 13 Oz. (electro Tan)		Appelez-nous	-
3	DD81-03505A		Paint, Touch-up 1/2 Oz. (stanford Brown)   (Replaces: 72106)				$ 109.32
3	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
3	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
3	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
3	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
3	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
3	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
3	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
3	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
4	777635		Deodorizer, Solid Stick-ups (2-pack)		Appelez-nous	-
5	675351		Grease 4 Oz. (use On Power Screw & Ram Pressure Pads)		Appelez-nous	-
6	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
6	10875		Wire (16 Ga. 80 C Blue)			Immediately	$ 20.64
6	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
6	242826		Wire, 25`` Roll (white 14 Ga.)		Appelez-nous	-
6	47261		Wire, 25`` Roll (black 12 Ga.)		Appelez-nous	-
6	299885		Wire, 25` Roll (red 12 Ga.)		Appelez-nous	-
7	WP279368		Adhesive, Insulation (2oz Tube)   (Replaces: 279368)			Immediately	$ 99.82
