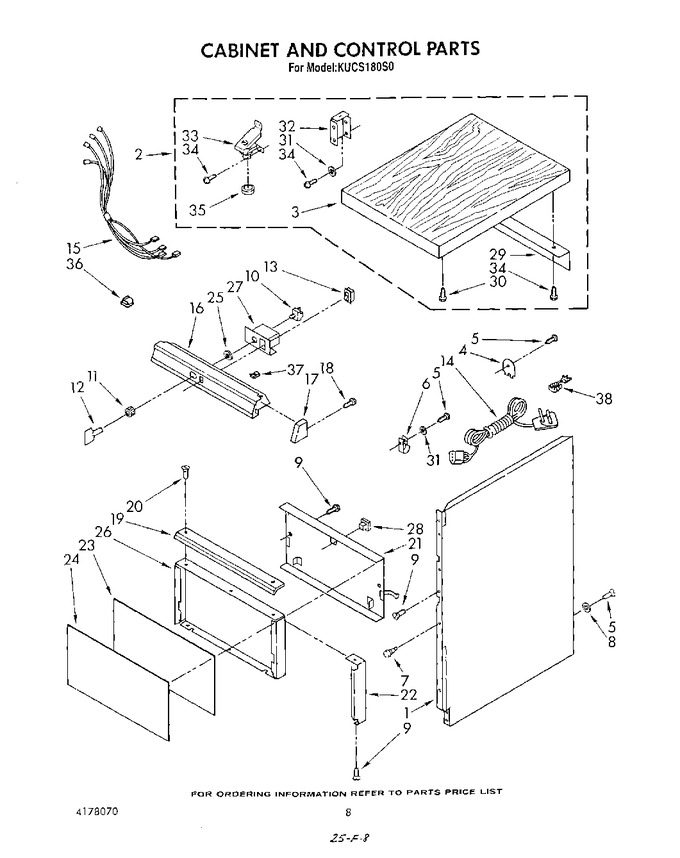

02 - Drive Motor And Ram , Lit/optional


03 - Frame


04 - Container


05 - Cabinet And Control


06 - Accessory


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4161315		Panel, Cabinet (back)		Appelez-nous	-
1	4161021		Panel, Cabinet (left Side)		Appelez-nous	-
1	4161030		Panel, Cabinet (right Side)		Appelez-nous	-
2	4164800		Freestanding, Conversion Kit		Appelez-nous	-
3	4161162		Top, Wood		Appelez-nous	-
4	4161301		Plate,		Appelez-nous	-
5	4159388		Screw, 10 X 1/2		Appelez-nous	-
6	4162573		Clamp, Wire		Appelez-nous	-
7	4159983		Bumper, Container		Appelez-nous	-
8	4159494		Washer		Appelez-nous	-
9	4159387		Screw, 10 X 3/8				$ 5.59
10	4162882		Switch, Rotary		Appelez-nous	-
11	4162883		Nut, Switch		Appelez-nous	-
12	4162904		Key, Switch				$ 10.47
13	4162891		Switch, Rocker		Appelez-nous	-
14	4162569		Cord, Power		Appelez-nous	-
15	4162896		Harness, Wiring (main Harness)		Appelez-nous	-
15	4162668		Harness, Wiring (interlock To Bypass)		Appelez-nous	-
15	4161258		Harness, Wiring (motor Drive To Directional Switch)		Appelez-nous	-
15	4162895		Harness, Wiring (rocker Switch To Fan Motor)		Appelez-nous	-
15	4162894		Harness, Wiring (ram Switch To Key)		Appelez-nous	-
15	4162893		Harness, Wiring (power Distribution)		Appelez-nous	-
16	4162884		Escutcheon, Control		Appelez-nous	-
17	4162886		End Cap (left Side)		Appelez-nous	-
17	4162885		End Cap (right Side)		Appelez-nous	-
18	4178052		Screw, 4 X 1/4 (4)		Appelez-nous	-
19	4160981		Handle, Litter Bin		Appelez-nous	-
20	4159441		Screw, 10-32 X 5/16		Appelez-nous	-
21	4161294		Panel, Litter Bin Rear		Appelez-nous	-
22	4161177		Trim, Litter Bin (bottom)		Appelez-nous	-
22	4161171		Trim, Litter Bin (right Side)		Appelez-nous	-
22	4161174		Trim, Litter Bin (left Side)		Appelez-nous	-
23	4162879		Filler, Bin Panel		Appelez-nous	-
24	4178036		Insert, Door (almond & White)		Appelez-nous	-
24	4178038		Insert, Door (harvest Wheat & Onyx Black)		Appelez-nous	-
25	4159503		Washer		Appelez-nous	-
26	4178013		Top, Bin		Appelez-nous	-
27	4162936		Barrier, Switch		Appelez-nous	-
28	4162660		Catch, Door   (Replaces: 4162024)				$ 82.99
29	4161161		Bracket, Wood Top		Appelez-nous	-
30	681615		Screw, 10 X 1``   (Replaces: 4159407)				$ 12.49
31	4159494		Washer (2)		Appelez-nous	-
32	4161149		Block, Leveling Leg (right Side)		Appelez-nous	-
32	4161150		Block, Leveling Leg (left Side)		Appelez-nous	-
33	4161154		Bracket, Foot (4)		Appelez-nous	-
34	4159388		Screw, 10 X 1/2		Appelez-nous	-
35	4161235		Clip, Foot (4)		Appelez-nous	-
36	4178064		Clip, Cable		Appelez-nous	-
37	4162903		Nut, Speed		Appelez-nous	-
38	4159026		Relief, Strain		Appelez-nous	-
