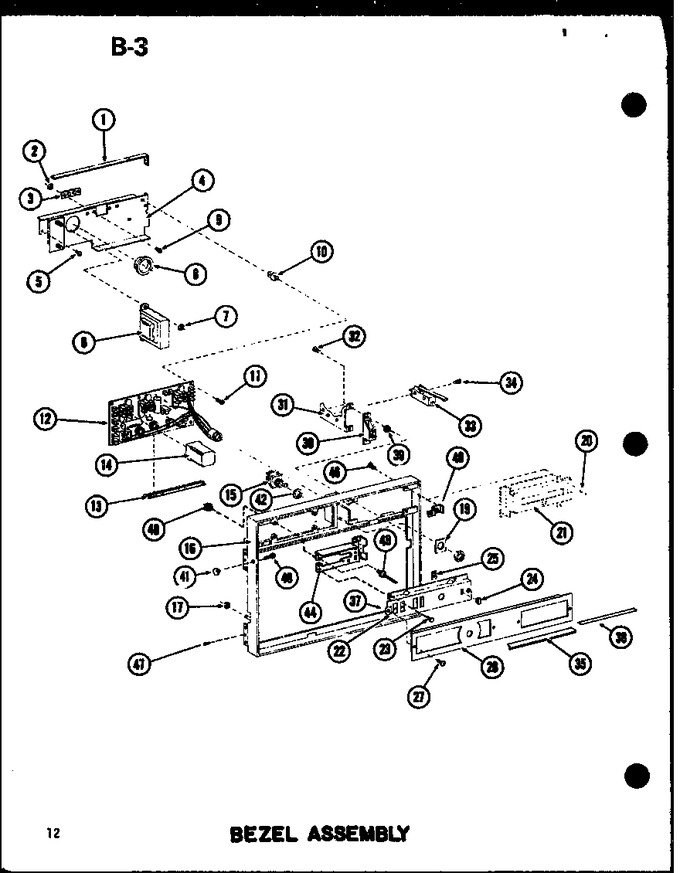

01 - Bezel Assy


02 - Control Assy


03 - Door Assy


04 - Electrical Assy


05 - Interior Assy


06 - Oven Cavity Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5718903		Gasket K		Appelez-nous	-
2	M0281001		Nut-hex		Appelez-nous	-
3	A3225501		Terminal Board		Appelez-nous	-
4	B5719301		Wldmt-pc Bracket		Appelez-nous	-
5	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
6	C3699401		Transformer		Appelez-nous	-
7	WP488130		Nut   (Replaces: M0282007)				$ 6.27
8	A4554802		Snap Bushing		Appelez-nous	-
9	M0202502		Screw		Appelez-nous	-
10	M0580203		Grommet		Appelez-nous	-
11	M0234117		Screw		Appelez-nous	-
12	C8712203		Pc Board K		Appelez-nous	-
13	B5715901		Guide-circuit Board		Appelez-nous	-
14	C8710301		Relay-pc Board		Appelez-nous	-
15	B5730101		Toggle Switch		Appelez-nous	-
16	D7293501		Bezel, Outer Case		Appelez-nous	-
17	M0282901		Nut, Self Thread		Appelez-nous	-
19	A3225301		Plate-voltage		Appelez-nous	-
20	M0202516		Screw A		Appelez-nous	-
21	C8707601		Escutcheon-el Timer		Appelez-nous	-
22	C8707701		Escutcheon-di Timer		Appelez-nous	-
23	M0229004		Screw		Appelez-nous	-
24	A3229601		Lens-pilot Light		Appelez-nous	-
25	M0285801		Clip		Appelez-nous	-
26	C8708401		Escutcheon-control		Appelez-nous	-
27	M0215102		Screw, Phillips Oval Head		Appelez-nous	-
30	C3680202		Strike-latch		Appelez-nous	-
31	B5675403		Bracket-latch		Appelez-nous	-
32	M0218117		Screw		Appelez-nous	-
33	A3163409		Switch, Preform		Appelez-nous	-
34	M0227520		Screw		Appelez-nous	-
35	B5735201		Gasket-esc		Appelez-nous	-
37	M0288301		Speed Nut K		Appelez-nous	-
38	M0275140		Tape Per Roll		Appelez-nous	-
39	M0270524		Washer		Appelez-nous	-
40	M0205442		Screw, Nylock		Appelez-nous	-
41	M0285902		T Nut		Appelez-nous	-
42	A3225301		Plate-voltage		Appelez-nous	-
43	B5760404		Brkt-escutcheon		Appelez-nous	-
43	B5760403		Brkt-escut		Appelez-nous	-
44	D7292407		Bezel Insert		Appelez-nous	-
46	M0216517		Screw		Appelez-nous	-
47	M0253230		Screw		Appelez-nous	-
48	M0270522		Washer		Appelez-nous	-
49	A4539607		Pop Rivet		Appelez-nous	-
