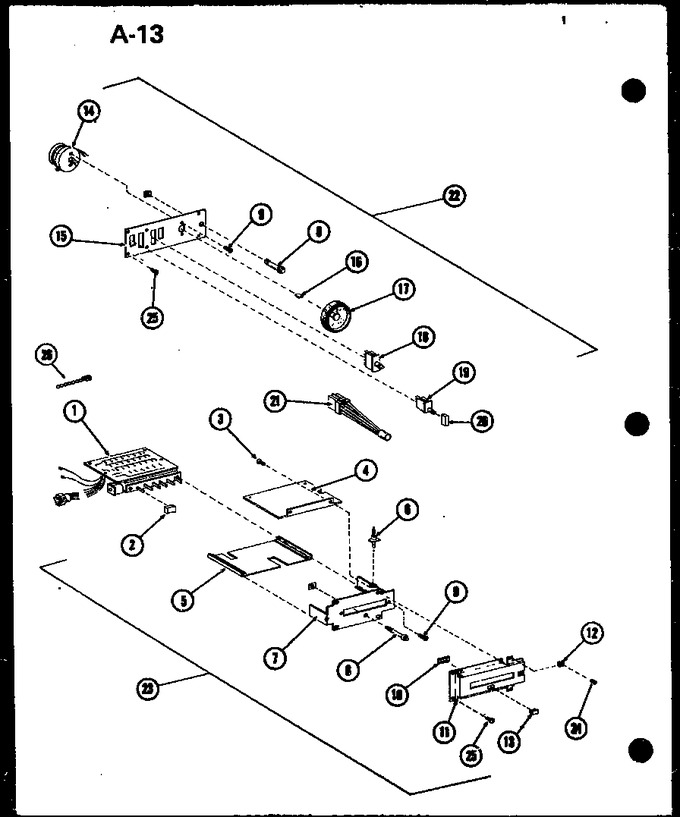

SELECT A DIAGRAM

01 - Bezel Assy


02 - Control Assy


03 - Door Assy


04 - Electrical Assy


05 - Interior Assy


06 - Oven Cavity Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7210901		Timer Assy		Appelez-nous	-
2	B5674201		Button Timer A-k		Appelez-nous	-
3	M0218115		Screw		Appelez-nous	-
4	C3679301		Insulation A		Appelez-nous	-
5	B5674602		Cover-timer		Appelez-nous	-
6	B5675501		Supt Ckt Bd A		Appelez-nous	-
7	C8722203		Bracket Timer Mtg		Appelez-nous	-
8	A3184401		Pilot Light A		Appelez-nous	-
9	M0202502		Screw		Appelez-nous	-
10	M0285801		Clip		Appelez-nous	-
11	C8707601		Escutcheon-el Timer		Appelez-nous	-
12	M0288301		Speed Nut K		Appelez-nous	-
13	A3229601		Lens-pilot Light		Appelez-nous	-
14	C8701201		Timer-12 Min		Appelez-nous	-
15	B5712801		Panel-dial Timer		Appelez-nous	-
16	M0117001		Clip		Appelez-nous	-
17	D7028702		Knob A		Appelez-nous	-
18	B5715401		Switch Pb A		Appelez-nous	-
19	B5674701		Switch		Appelez-nous	-
20	B5674001		Button Stop A		Appelez-nous	-
20	B5674003		Button Defrost		Appelez-nous	-
20	B5674002		Button Start A		Appelez-nous	-
21	C8712801		Wiring Harness		Appelez-nous	-
22	C8713201		Timer Assy-dial		Appelez-nous	-
23	C8712901		Timer Assy-elect		Appelez-nous	-
24	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
25	M0218116		Screw		Appelez-nous	-
26	M0321204		Wire Tie		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
