SELECT A DIAGRAM

01 - Bezel Assy


02 - Control Assy


03 - Door Assy


04 - Electrical Assy

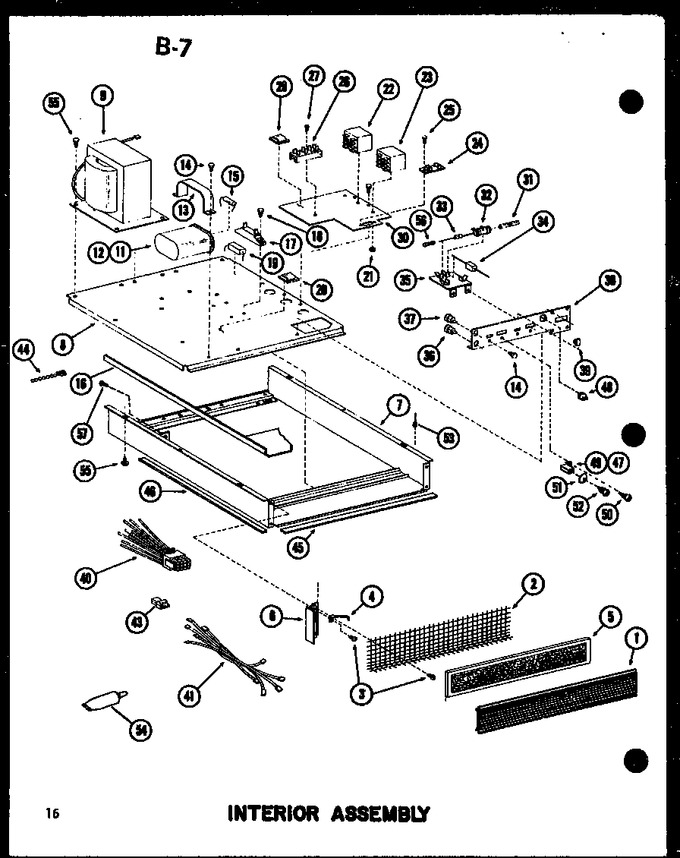

05 - Interior Assy


06 - Oven Cavity Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8708501		Grille Air Inlet		Appelez-nous	-
2	B5713901		Screen, Air Intake		Appelez-nous	-
3	M0213815		Screw		Appelez-nous	-
4	A3225201		Clip		Appelez-nous	-
4	A3225202		Clip		Appelez-nous	-
5	B5714801		Filter		Appelez-nous	-
6	B5714401		End Cap-grill		Appelez-nous	-
7	C8709102		Base Pan Wld		Appelez-nous	-
8	D7203601		Chassis		Appelez-nous	-
9	D7199602		Transformer, H.v. 230/208 V.,		Appelez-nous	-
11	R0160021		Capacitor Assy		Appelez-nous	-
12	C8790501		Capacitor Assy		Appelez-nous	-
13	A3184702		Bracket		Appelez-nous	-
14	M0216517		Screw		Appelez-nous	-
15	M0305202		Resistor A		Appelez-nous	-
16	C8775301		Oven Mtg Plate		Appelez-nous	-
17	11QBP0235		Kit, Diode   (Replaces: B5685801)				$ 15.33
18	M0216517		Screw		Appelez-nous	-
19	M0305204		Resistor		Appelez-nous	-
20	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
21	WP488130		Nut   (Replaces: M0282007)				$ 6.27
22	C8709603		Relay-power		Appelez-nous	-
23	C8709602		Relay-surge		Appelez-nous	-
24	A3225501		Terminal Board		Appelez-nous	-
25	M0227501		Screw		Appelez-nous	-
26	B5677203		Terminal Block		Appelez-nous	-
27	M0234117		Screw		Appelez-nous	-
29	M0104401		Clip-cord		Appelez-nous	-
30	B5713001		Bracket-relay		Appelez-nous	-
31	M0321701		Sleeve		Appelez-nous	-
32	M0305009		Resistor A		Appelez-nous	-
33	M0308102		Fuse		Appelez-nous	-
34	M0305204		Resistor		Appelez-nous	-
35	B5687402		Terminal Board		Appelez-nous	-
36	M0325201		Cap,vinyl		Appelez-nous	-
37	M0325402		Bushing,terminal		Appelez-nous	-
38	C8706601		Brkt-fuse Resistor		Appelez-nous	-
39	M0110501		Clip K		Appelez-nous	-
40	D7227501		Wiring Harness		Appelez-nous	-
41	C8711002		Wiring Harness		Appelez-nous	-
43	M0325501		Insulator, Pod K		Appelez-nous	-
44	M0321204		Wire Tie		Appelez-nous	-
45	C8737301		Gasket, Base Pan		Appelez-nous	-
46	C8737302		Gasket, Base Pan		Appelez-nous	-
47	B5737001		Brkt-solenoid		Appelez-nous	-
48	A3252701		Bushing-terminal		Appelez-nous	-
49	B5677302		Solenoid, Bell		Appelez-nous	-
50	M0201414		Screw		Appelez-nous	-
51	A3252901		Gong-timer		Appelez-nous	-
52	M0227527		Screw		Appelez-nous	-
53	A4539602		Pop Rivet		Appelez-nous	-
54	M0275560		Rtv (blk)		Appelez-nous	-
55	M0253543		Screw K		Appelez-nous	-
56	M0321701		Sleeve		Appelez-nous	-
57	M0216517		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
