Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

2 B5778001 End Plate Appelez-nous -
3 C8707801 Brkt-blower Scroll Appelez-nous -
4 WP90767 Screw   (Replaces: M0216529) In-Stock Immediately $ 7.04

5 A3030303 Gasket (per Foot) Appelez-nous -
6 A4554806 Snap Bushing Appelez-nous -
7 C3670802 Wheel, Blower Appelez-nous -
8 M0202642 Screw Appelez-nous -
9 M0272605 Washer Appelez-nous -
10 C8710701 Wldmt-blower Scroll Appelez-nous -
11 A3030309 Gasket (per Foot) Appelez-nous -
12 C8711902 Kit, Motor Appelez-nous -
13 B5706702 Fan Blade-blower Appelez-nous -
14 C8835104 Magnetron Appelez-nous -
15 B5716901 Bracket-connector Appelez-nous -
16 M0104401 Clip-cord Appelez-nous -
17 B5731701 Kit,cord Appelez-nous -
18 M0371301 Strain Relief Appelez-nous -
19 M0118901 Clip Appelez-nous -
20 B5774401 Brkt-mag Tube Appelez-nous -
21 67006425 Screw   (Replaces: M0216530) In-Stock Immediately $ 6.26

22 A3030308 Gasket Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

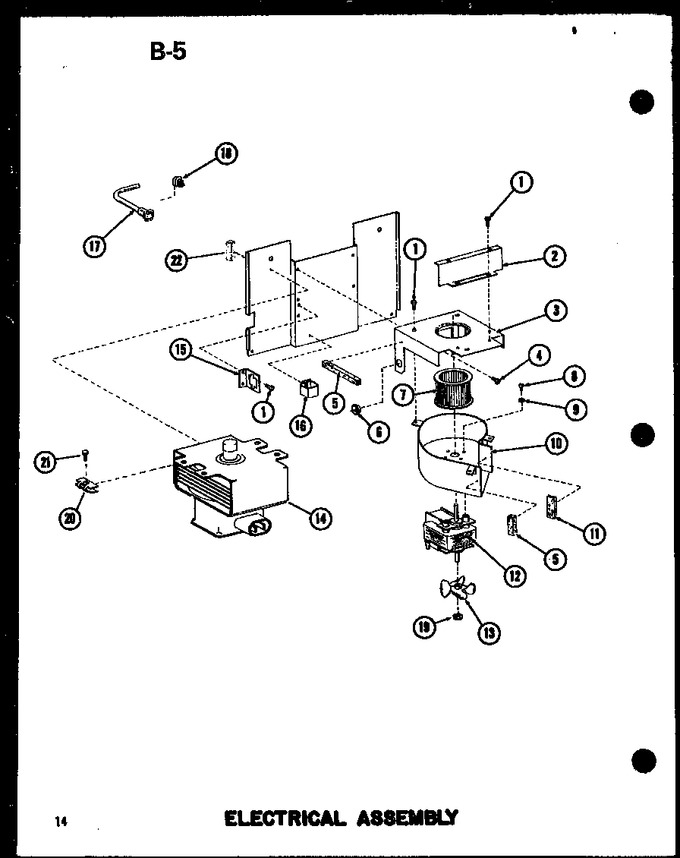

Diagram for RC-14 (BOM: P7210009M)
