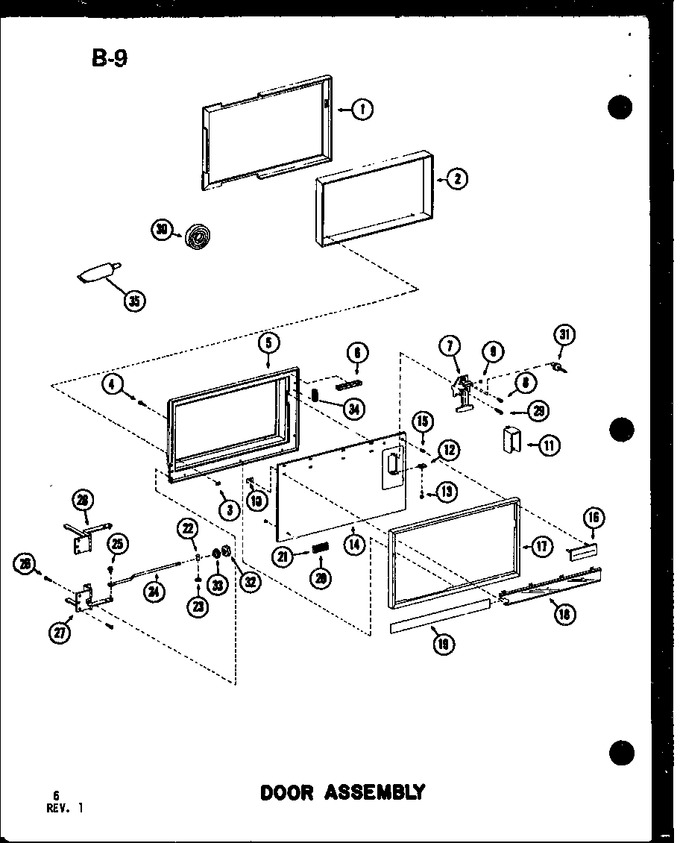

01 - Door Assy


02 - Page 2


03 - Page 3


04 - Page 4


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7396401		Gasket		Appelez-nous	-
2	D7143802		Inner Door Kit		Appelez-nous	-
3	M0288801		Nut K		Appelez-nous	-
4	M0253418		Screw		Appelez-nous	-
5	D7132501		Weldment, Inner Door Ring		Appelez-nous	-
6	A4591121		Gasket		Appelez-nous	-
7	D7178504		Door Latch Assembly		Appelez-nous	-
8	WPW10068250		Screw   (Replaces: M0234029)				$ 3.66
9	A3195701		Guides Hndl K		Appelez-nous	-
10	M0286401		Clip		Appelez-nous	-
11	B5671901		Bezel-door Handle		Appelez-nous	-
12	M0288102		Speed Nut		Appelez-nous	-
13	M0213817		Screw		Appelez-nous	-
14	D7178601		Panel Outer Door K		Appelez-nous	-
15	M0113005		Clip Push On		Appelez-nous	-
16	C3668802		Escutcheon		Appelez-nous	-
17	D7132701		Outer Door Ring		Appelez-nous	-
18	B5674501		Lens-menu Guide		Appelez-nous	-
19	C8713302		Menu Guide		Appelez-nous	-
20	B5694723		Insert Medallion		Appelez-nous	-
21	B5694901		Medallion		Appelez-nous	-
22	A3181801		Guide-door Stop		Appelez-nous	-
23	A3182101		Bushing		Appelez-nous	-
24	B5748702		Arm, Dr Stop K		Appelez-nous	-
25	A3185001		Bushing-door Arm		Appelez-nous	-
26	M0253230		Screw		Appelez-nous	-
27	C3666306		Hinge-bottom		Appelez-nous	-
28	C3666305		Hinge-top		Appelez-nous	-
29	W11227370		Screw   (Replaces: M0234030)			Immediately	$ 12.78
30	M0275141		Tape, Gasket To Door, 1``		Appelez-nous	-
31	B5642906		Rivet, Pop (wht)		Appelez-nous	-
32	WP488130		Nut   (Replaces: M0282007)				$ 6.27
33	M0270501		Washer		Appelez-nous	-
34	M0275154		Tape Per Roll		Appelez-nous	-
35	M0275501		Sealer		Appelez-nous	-
