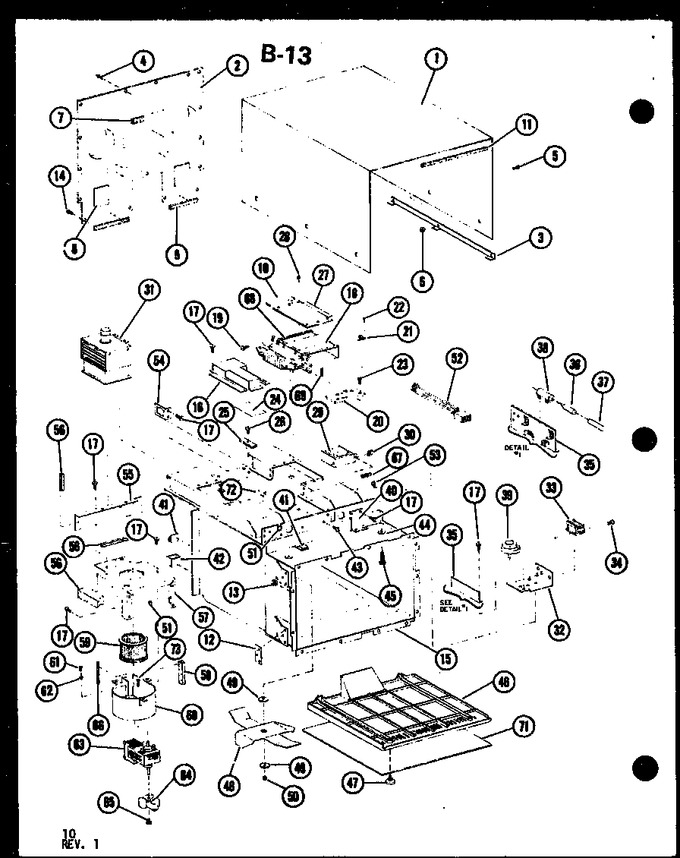

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7379601 | Wrapper, Outer Case |
|
- | |||||
| 2 | C8801104 | Access Panel Weld |
|
- | |||||
| 3 | C8812901 | Guide-strip |
|
- | |||||
| 4 | A4539601 | Pop Rivet |
|
- | |||||
| 5 | M0207943 | Screw |
|
- | |||||
| 6 | WP3400029 | Nut (Replaces: M0282010) |
|
Immediately | $ 6.98 | ||||
| 7 | A3030304 | Gasket, 24`` |
|
- | |||||
| 8 | A3205601 | Insulation |
|
- | |||||
| 9 | A3030335 | Gasket-per Ft |
|
- | |||||
| 10 | B5718903 | Gasket K |
|
- | |||||
| 11 | A3030301 | Gasket (inch) |
|
- | |||||
| 12 | A3250301 | Shim-hinge |
|
- | |||||
| 13 | M0282901 | Nut, Self Thread |
|
- | |||||
| 14 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 15 | D7359407 | Oven Weld |
|
- | |||||
| 16 | C8822301 | Air Duct Isolator |
|
- | |||||
| 17 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 18 | C8720508 | Assembly, Isolator |
|
- | |||||
| 19 | M0216517 | Screw |
|
- | |||||
| 20 | B5793501 | Thermal Plate |
|
- | |||||
| 21 | B5684105 | Thermal Protector K |
|
- | |||||
| 21 | B5684107 | Protector, Thermal |
|
- | |||||
| 22 | M0234114 | Screw |
|
- | |||||
| 23 | M0234016 | Screw |
|
- | |||||
| 24 | M0275011 | Tape-plastic |
|
- | |||||
| 25 | B5774402 | Brkt-mag Tube |
|
- | |||||
| 26 | 67006425 | Screw (Replaces: M0216530) |
|
Immediately | $ 6.26 | ||||
| 27 | B5714101 | Cover-isolator |
|
- | |||||
| 28 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 29 | C3699302 | Transformer |
|
- | |||||
| 30 | M0288107 | Speed Nut |
|
- | |||||
| 31 | C8835106 | Magnetron |
|
- | |||||
| 32 | C8766002 | Plate Relay Mtg |
|
- | |||||
| 33 | B5706403 | Relay-pwr |
|
- | |||||
| 34 | M0213815 | Screw |
|
- | |||||
| 35 | B5793701 | Terminal Board |
|
- | |||||
| 36 | M0308109 | Fuse Resistor K (Replaces: M0308107) |
|
- | |||||
| 37 | M0321703 | Sleeve |
|
- | |||||
| 38 | M0308602 | Resistor |
|
- | |||||
| 39 | B6602811 | Motor Stirrer, 240 V., 75 Rpm |
|
- | |||||
| 40 | B5756101 | Brkt Supt-interlock |
|
- | |||||
| 41 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 42 | M0104401 | Clip-cord |
|
- | |||||
| 43 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 44 | M0273612 | Washer |
|
- | |||||
| 45 | M0253504 | Screw |
|
- | |||||
| 46 | D3796201 | Splatter Shield |
|
- | |||||
| 47 | A1002301 | Screw |
|
- | |||||
| 48 | C8708601 | Stirrer Blade (antenna) |
|
- | |||||
| 49 | A3109101 | Washer |
|
- | |||||
| 50 | M0114002 | Clip |
|
- | |||||
| 51 | A3293503 | Snap Bushing |
|
- | |||||
| 52 | D7400301 | Wire Harness-oven |
|
- | |||||
| 53 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 54 | B5716901 | Bracket-connector |
|
- | |||||
| 55 | B5778001 | End Plate |
|
- | |||||
| 56 | A3030308 | Gasket |
|
- | |||||
| 57 | C8707801 | Brkt-blower Scroll |
|
- | |||||
| 58 | A3030303 | Gasket (per Foot) |
|
- | |||||
| 59 | C3670802 | Wheel, Blower |
|
- | |||||
| 60 | C8710701 | Wldmt-blower Scroll |
|
- | |||||
| 61 | M0204701 | Screw |
|
- | |||||
| 62 | M0272605 | Washer |
|
- | |||||
| 63 | C8811801 | Kit, Motor |
|
- | |||||
| 64 | B5766702 | Fan Blade |
|
- | |||||
| 65 | M0118901 | Clip |
|
- | |||||
| 66 | A3030309 | Gasket (per Foot) |
|
- | |||||
| 67 | B5718906 | Gasket |
|
- | |||||
| 68 | A3225401 | Gasket K |
|
- | |||||
| 69 | A3225402 | Gasket K |
|
- | |||||
| 71 | B5795001 | Tray-oven |
|
- | |||||
| 72 | M0104701 | Clip-cord |
|
- | |||||
| 73 | M0213817 | Screw |
|
- |
