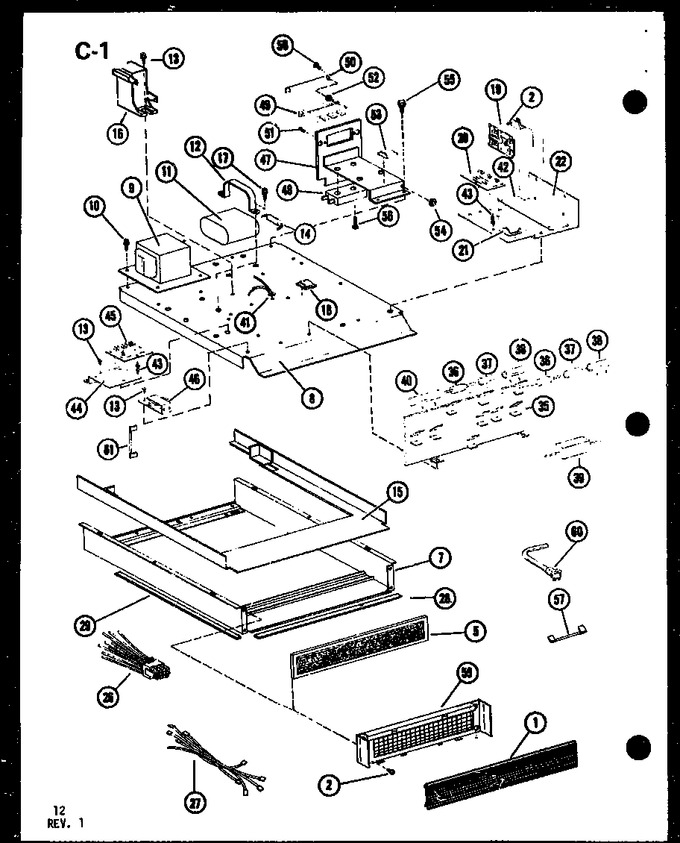

01 - Door Assy
02 - Page 2
03 - Page 3
04 - Page 4
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8708501 | Grille Air Inlet |
|
- | |||||
| 2 | M0213815 | Screw |
|
- | |||||
| 5 | B5714801 | Filter |
|
- | |||||
| 7 | C8709104 | Base Pan Weldment |
|
- | |||||
| 8 | D7203603 | Chassis |
|
- | |||||
| 9 | D7325301 | Transformer |
|
- | |||||
| 10 | M0253543 | Screw K |
|
- | |||||
| 11 | C8790501 | Capacitor Assy |
|
- | |||||
| 12 | A3184702 | Bracket |
|
- | |||||
| 13 | M0218116 | Screw |
|
- | |||||
| 14 | M0305202 | Resistor A |
|
- | |||||
| 15 | C8775302 | Oven Mtg Plate |
|
- | |||||
| 16 | B5767803 | Kit, Diode |
|
- | |||||
| 17 | M0216517 | Screw |
|
- | |||||
| 18 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 19 | C3669602 | Kit, Relay |
|
- | |||||
| 20 | B5691004 | Time Delay K |
|
- | |||||
| 21 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 22 | C8800001 | Brkt-surge Relay |
|
- | |||||
| 26 | D7400201 | Wire Harness-ps |
|
- | |||||
| 27 | C8814401 | Wiring Harness |
|
- | |||||
| 28 | C8870702 | Gasket, Base Pan |
|
- | |||||
| 29 | C8870703 | Gasket, Base Pan |
|
- | |||||
| 35 | B5787601 | Terminal Board |
|
- | |||||
| 36 | M0308102 | Fuse |
|
- | |||||
| 37 | M0321701 | Sleeve |
|
- | |||||
| 38 | M0308601 | Resistor A |
|
- | |||||
| 39 | M0308502 | Resistor |
|
- | |||||
| 40 | M0308603 | Resistor |
|
- | |||||
| 41 | D7384601 | Jumper Wire |
|
- | |||||
| 42 | B5788401 | Insulation-relay |
|
- | |||||
| 43 | B5675501 | Supt Ckt Bd A |
|
- | |||||
| 44 | A3230402 | Brkt-time Delay |
|
- | |||||
| 45 | C8770602 | Buzzer Control Bd |
|
- | |||||
| 46 | C8835701 | Buzzer |
|
- | |||||
| 47 | B5788001 | Strain Relief Weld |
|
- | |||||
| 48 | C8715203 | Switch |
|
- | |||||
| 49 | B5790101 | Switch |
|
- | |||||
| 50 | B5789401 | Switch Cover |
|
- | |||||
| 51 | M0202520 | Screw |
|
- | |||||
| 52 | M0800006 | Spacer |
|
- | |||||
| 53 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 54 | A3293503 | Snap Bushing |
|
- | |||||
| 55 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 56 | M0227520 | Screw |
|
- | |||||
| 57 | D7292619 | Jumper Wire |
|
- | |||||
| 58 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 59 | C8847901 | Air Inlet Weld |
|
- | |||||
| 60 | B5731701 | Kit,cord |
|
- | |||||
| 61 | C3655878 | Jumper Wire |
|
- |
