SELECT A DIAGRAM

01 - Door Assy


02 - Page 2


03 - Page 3


04 - Page 4

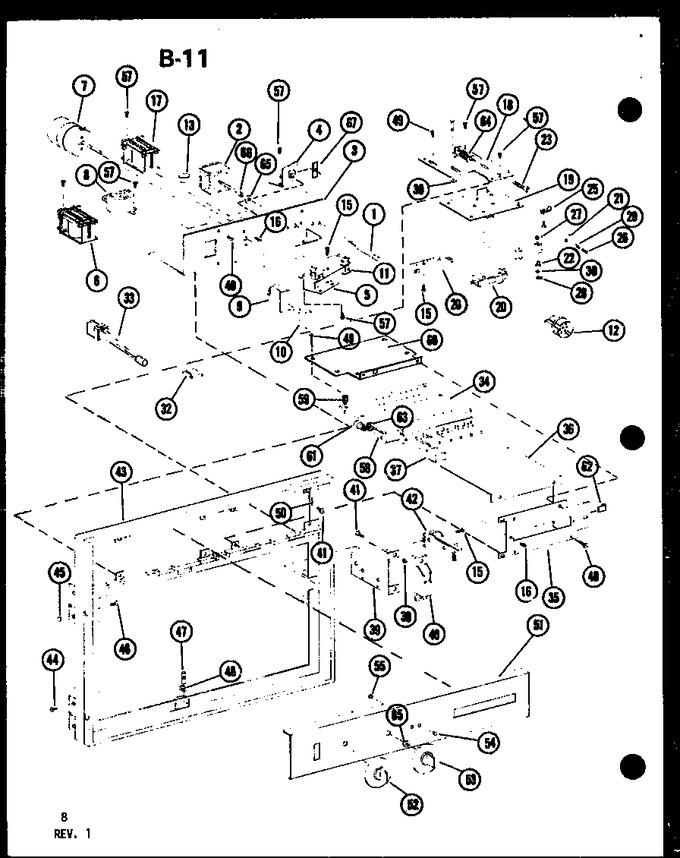

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5786603		Light-pilot		Appelez-nous	-
1	B5786602		Light-pilot		Appelez-nous	-
2	B5786701		Switch-selector		Appelez-nous	-
3	D7380401		Bracket		Appelez-nous	-
4	B5788201		Bracket		Appelez-nous	-
5	B5794001		Bracket		Appelez-nous	-
6	B5706404		Relay		Appelez-nous	-
7	C8701203		Timer-12 Min		Appelez-nous	-
8	B5699804		Timer-defrost		Appelez-nous	-
9	B5674701		Switch		Appelez-nous	-
10	B5674003		Button Defrost		Appelez-nous	-
11	B5731306		Switch A		Appelez-nous	-
12	D7400101		Wire Harness-timer		Appelez-nous	-
13	A3293503		Snap Bushing		Appelez-nous	-
15	M0227520		Screw		Appelez-nous	-
16	W11084238		Screw   (Replaces: M0234001)		Appelez-nous	-
17	B5674306		Relay		Appelez-nous	-
18	B5747201		Adj Brkt-switch		Appelez-nous	-
19	B5747502		Mtg Plate-interlock		Appelez-nous	-
20	C3670014		Switch-interlock (limit)		Appelez-nous	-
21	B5755701		Actuating Arm		Appelez-nous	-
22	A3260201		Pin-retainer		Appelez-nous	-
23	M0231249		Screw		Appelez-nous	-
25	M0102301		Clamp		Appelez-nous	-
26	M0204617		Screw		Appelez-nous	-
27	A3168101		See Svc Ltr Cr-163d		Appelez-nous	-
28	A3171501		Clip,hairpin		Appelez-nous	-
29	M0282005		Nut K				$ 7.07
30	M0274032		Washer Non-metal		Appelez-nous	-
32	M0118801		Clip		Appelez-nous	-
33	D7406101		Wire Harness		Appelez-nous	-
34	D7443802		Timer, Elect K		Appelez-nous	-
35	C8847801		Bracket		Appelez-nous	-
36	B5794102		Wire Shield		Appelez-nous	-
37	B5674203		Button Timer A-k		Appelez-nous	-
39	B5675403		Bracket-latch		Appelez-nous	-
40	C3680202		Strike-latch		Appelez-nous	-
41	M0216517		Screw		Appelez-nous	-
42	A3163413		Switch-latch		Appelez-nous	-
43	D7293502		Bezel-outer Case		Appelez-nous	-
44	M0253230		Screw		Appelez-nous	-
45	M0285902		T Nut		Appelez-nous	-
46	M0205442		Screw, Nylock		Appelez-nous	-
47	A3181801		Guide-door Stop		Appelez-nous	-
48	A3182101		Bushing		Appelez-nous	-
49	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
50	B5785802		Support Timer		Appelez-nous	-
51	D7403201		Escutcheon		Appelez-nous	-
52	B5798001		Knob		Appelez-nous	-
53	B5798002		Knob		Appelez-nous	-
54	B5796701		Lens		Appelez-nous	-
55	M0500701		O Ring		Appelez-nous	-
57	M0213815		Screw		Appelez-nous	-
58	D7429101		Assy, Pb Switch K		Appelez-nous	-
59	M0580502		Support K		Appelez-nous	-
60	B8313601		Plate K		Appelez-nous	-
61	D7451801		Wire Harness-pb		Appelez-nous	-
62	M0288213		Clip		Appelez-nous	-
63	M0321204		Wire Tie		Appelez-nous	-
64	A1020601		Spring-compression		Appelez-nous	-
65	M0282401		Nut-brass A		Appelez-nous	-
66	M0800009		Spacer		Appelez-nous	-
67	M0287708		Speed Nut		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
