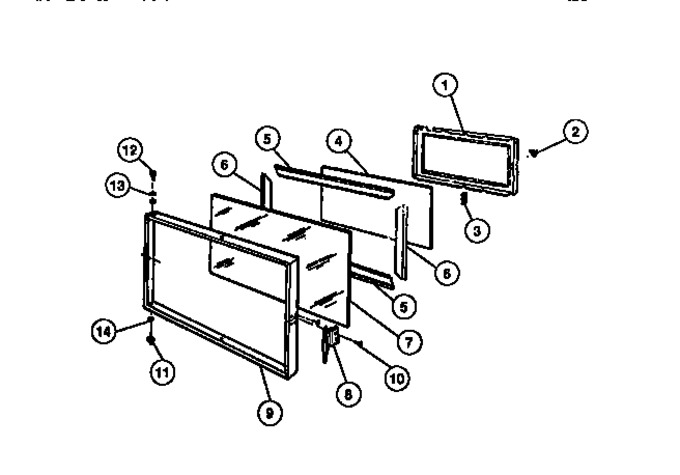

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3201925		Liner, Door		Appelez-nous	-
2	3201926		Clip, Catch		Appelez-nous	-
3	3201927		Reinforcement, Handle		Appelez-nous	-
4	3201928		Glass, Inner		Appelez-nous	-
5	3201929		Support, Glass (2)		Appelez-nous	-
6	3201930		Support, Glass (2)		Appelez-nous	-
7	3201931		Glass, Outer		Appelez-nous	-
8	3201944		Handle		Appelez-nous	-
9	3201932		Frame, Door		Appelez-nous	-
10	3201933		Screw		Appelez-nous	-
11	3201934		Pivot, Lower		Appelez-nous	-
12	3201935		Pivot, Upper		Appelez-nous	-
13	3201936		Washer, Lock		Appelez-nous	-
14	3201937		Washer		Appelez-nous	-
