SELECT A DIAGRAM
01 - Cover
02 - Oven Door, Panels
03 - Elements, Broilers
04 - Oven Liner, Panels
05 - Control Panel, Cook-master, Thermos
SELECT A DIAGRAM
New Model Search:

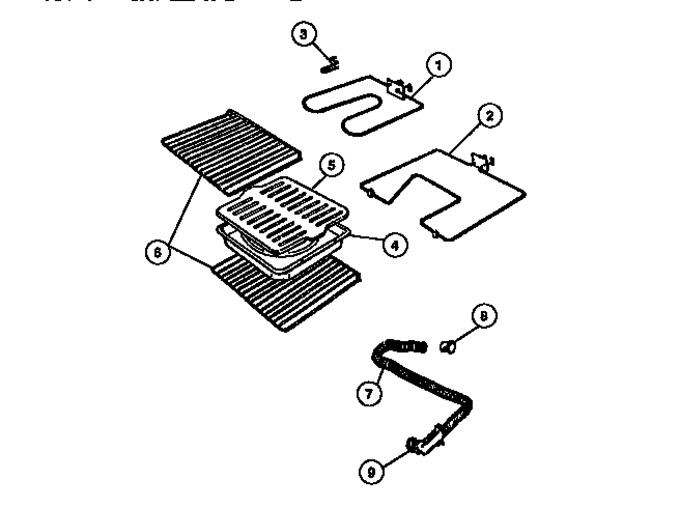

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3201916 | Element, Broil |
|
- | |||||
| 2 | 3201917 | Element, Bake |
|
- | |||||
| 3 | 3201918 | Clip, Support (2) |
|
- | |||||
| 4 | 3201919 | Pan-broiler |
|
- | |||||
| 5 | 3201920 | Insert, Broiler |
|
- | |||||
| 6 | 3201921 | Rack, Oven (2) |
|
- | |||||
| 7 | 3201922 | Cable, Wire |
|
- | |||||
| 8 | 3201923 | Bushing (2) |
|
- | |||||
| 9 | 3201924 | Connector |
|
- |
