SELECT A DIAGRAM

01 - Cover


02 - Oven Door, Panels


03 - Elements, Broilers


04 - Oven Liner, Panels


05 - Control Panel, Cook-master, Thermos

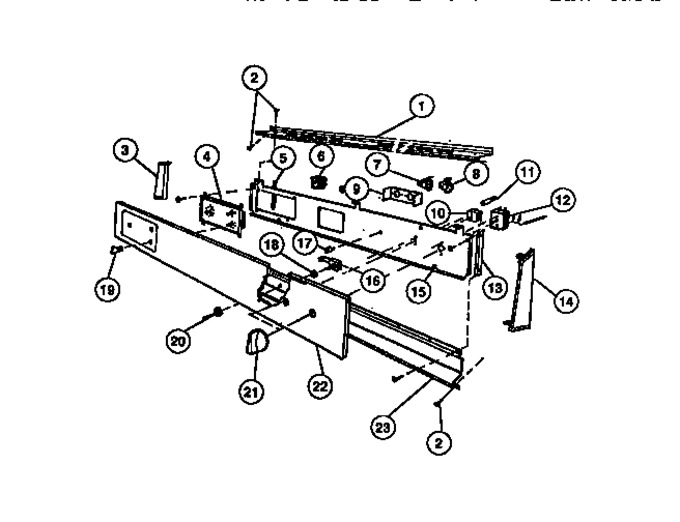

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3201493		Trim		Appelez-nous	-
2	3201861		Screw				$ 0.76
3	3201863		Cap, End Lh		Appelez-nous	-
4	3201864		Clock		Appelez-nous	-
5	3201862		Support Lh		Appelez-nous	-
6	3201866		Relay, Thermal		Appelez-nous	-
7	3201867		Protector, Thermal		Appelez-nous	-
8	3201868		Protector, Thermal		Appelez-nous	-
9	3201869		Bracket, Thermal Protector		Appelez-nous	-
10	3201871		Switch, Selector		Appelez-nous	-
11	3201870		Light, Pilot		Appelez-nous	-
12	3201872		Thermostat		Appelez-nous	-
13	3201873		Support Rh		Appelez-nous	-
14	3201878		Cap, End Rh		Appelez-nous	-
15	3201874		Panel, Switch		Appelez-nous	-
16	3201880		Switch, Ov. Lt.		Appelez-nous	-
17	3201882		Spacer		Appelez-nous	-
18	3201881		Washer		Appelez-nous	-
19	3201865		Knob, Clock		Appelez-nous	-
20	3201875		Nut, Sw.		Appelez-nous	-
21	3201876		Knob		Appelez-nous	-
22	3201877		Glass		Appelez-nous	-
23	3201879		Trim		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
