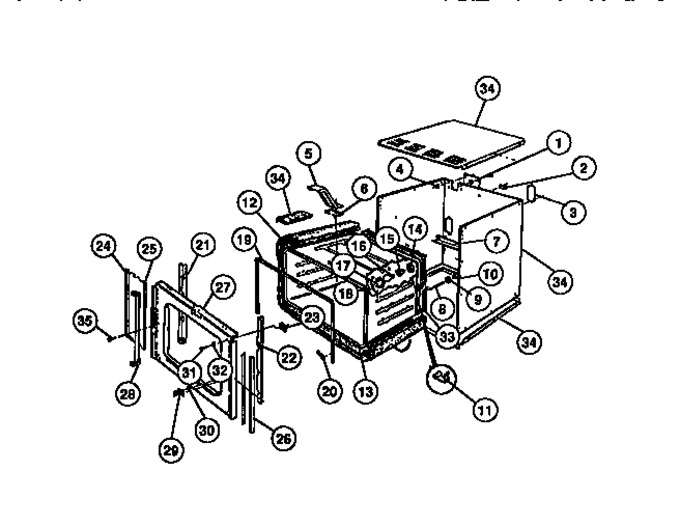

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08014750		Plate, Conduit		Appelez-nous	-
2	3201886		Clip		Appelez-nous	-
3	3201887		Cover		Appelez-nous	-
4	154079601		Nut   (Replaces: 3201885)				$ 0.41
5	3201906		Vent		Appelez-nous	-
6	N/A		Seal, Silicon ( Purchase Locally)		Appelez-nous	-
7	3201888		Support		Appelez-nous	-
8	3201914		Hook, Bolt (2)		Appelez-nous	-
9	134716700		Washer (2)   (Replaces: 3201909)				$ 2.12
10	154079601		Nut (2)   (Replaces: 3201885)				$ 0.41
11	3201910		Clip		Appelez-nous	-
12	3201890		Insulation, Wrap		Appelez-nous	-
13	3201905		Liner, Oven		Appelez-nous	-
14	3051511		Cup-light				$ 60.22
15	3201907		Receptacle, Light		Appelez-nous	-
16	3201908		Bulb, Ov. Lt.		Appelez-nous	-
17	5304524341		Cover, Glass Lite   (Replaces: 3201911)			Immediately	$ 15.61
18	3201912		Retainer, Cover		Appelez-nous	-
19	3201913		Gasket, Door		Appelez-nous	-
20	3201943		Clip, Gasket (2)		Appelez-nous	-
21	3201892		Support Lh		Appelez-nous	-
22	3201901		Support Rh		Appelez-nous	-
23	3201891		Nut, Speed (5)		Appelez-nous	-
24	3201893		Trim		Appelez-nous	-
25	3201894		Tape, 20``		Appelez-nous	-
26	3201902		Support Rh		Appelez-nous	-
27	3201900		Frame, Front		Appelez-nous	-
28	3201897		Hinge		Appelez-nous	-
29	3201898		Strike, Door		Appelez-nous	-
30	3201899		Washer		Appelez-nous	-
31	3201895		Screw (2)		Appelez-nous	-
32	3201896		Washer (2)		Appelez-nous	-
33	3201889		Insulation, Back		Appelez-nous	-
34	N/A		Wrapper		Appelez-nous	-
35	3201945		Screw (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
