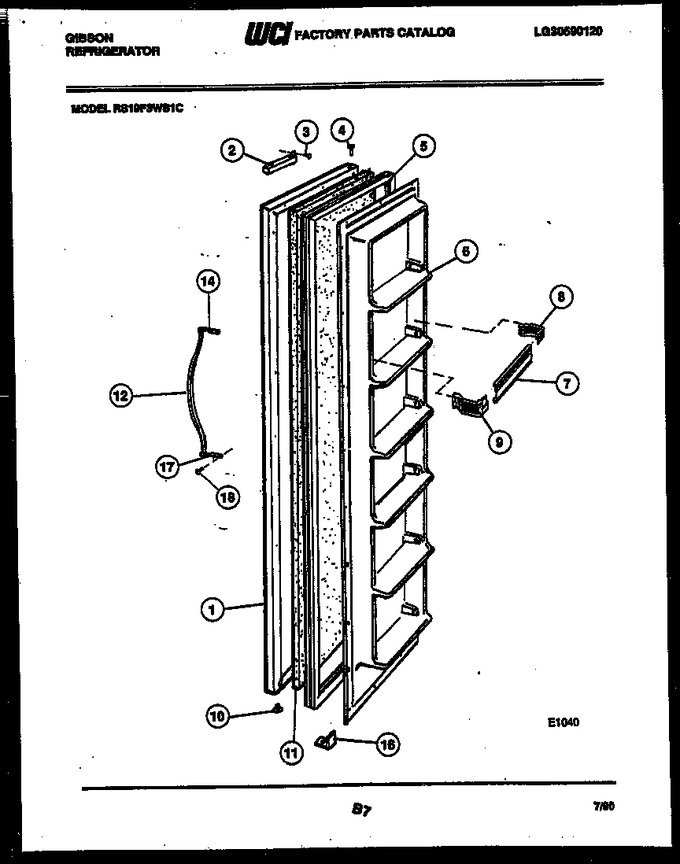

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G169618		Freezer Door-white		Appelez-nous	-
2	5303200272		Door Closer		Appelez-nous	-
3	5306588927		Screw-mounting		Appelez-nous	-
4	5303001022		Hinge Bearing, Upper		Appelez-nous	-
5	5303200474		Gasket-freezer		Appelez-nous	-
6	G164821-02		Door Panel-inner		Appelez-nous	-
7	5315454139		Door Rack (6)		Appelez-nous	-
8	5315510407		Support Rh (6)		Appelez-nous	-
9	5315510207		Support Lh (6)		Appelez-nous	-
10	5315230801		Plug-door Bottom		Appelez-nous	-
11	5303007739		Insulation, Bulk		Appelez-nous	-
12	5317566606		Handle-freezer Door		Appelez-nous	-
14	5303001014		Handle - End Top		Appelez-nous	-
16	5308000790		Bumper, Light Switch				$ 3.86
17	5303001015		Handle - End Bottom				$ 74.29
18	5308011745		Screw				$ 10.38
16A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
1A	G169618-08		Freezer Door-avoc (non-illustrated)		Appelez-nous	-
1B	G169618-09		Freezer Door-wheat (non-illustrated)		Appelez-nous	-
1C	G169618-10		Freezer Door-coffee (non-illustrated)		Appelez-nous	-
1D	G169618-11		Freezer Door-almond (non-illustrated)		Appelez-nous	-
4A	5308012007		Hinge Bearing - Lower (non-illustrated)		Appelez-nous	-
6A	218843801		Screw   (Replaces: 5303001001)				$ 14.41

    View Diagram in Separate Window       Print Part List
