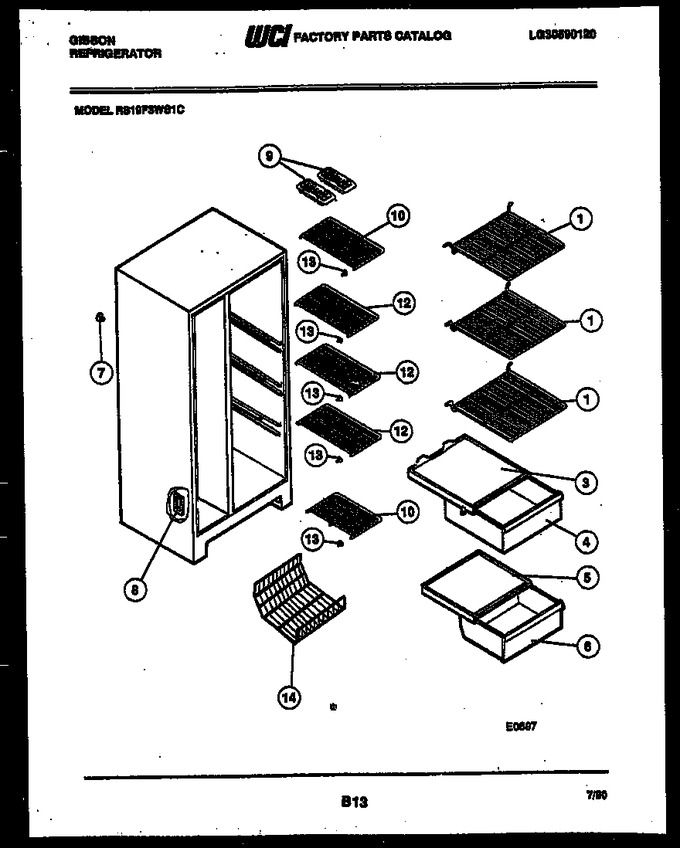

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G168878-02 | Shelf-refrigerator (3) |
|
- | |||||
| 3 | 3016713 | Cover-crisper-upper |
|
- | |||||
| 4 | G179707-05 | Pan-storage-upper |
|
- | |||||
| 5 | 3016716 | Cover-crisper Lower |
|
- | |||||
| 6 | G179708-05 | Pan-storage-lower |
|
- | |||||
| 7 | 5303001287 | Ferrule-outer (2) |
|
- | |||||
| 8 | 5308000809 | Ferrule-outer |
|
- | |||||
| 9 | 5303001324 | Tray-plastic (2) |
|
- | |||||
| 10 | G185784-01 | Shelf-freezer (2) |
|
- | |||||
| 12 | 3016707 | Shelf-freezer (3) |
|
- | |||||
| 13 | 5304509705 | Grommet-shelf Mounting (10) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 14 | G185905-01 | Shelf-trivet |
|
- | |||||
| 7A | 5303001286 | Ferrule-inner (2) (non-illustrated) |
|
- | |||||
| 8A | 5308000808 | Ferrule-inner (non-illustrated) |
|
- |
