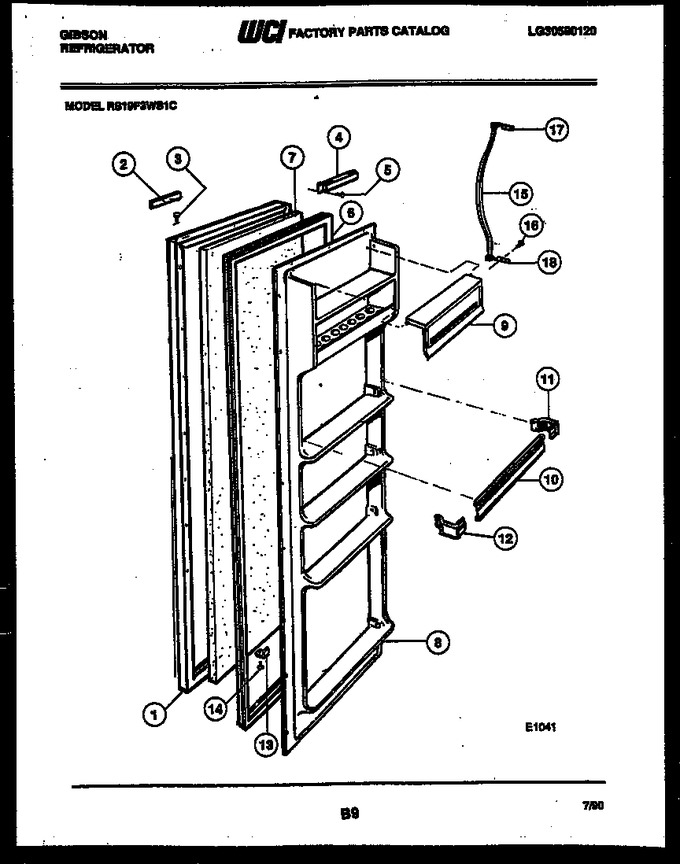

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G169612-09		Refr Door-wheat		Appelez-nous	-
1	G169612-10		Refr Door-coffee		Appelez-nous	-
1	G169612-11		Refr Door-almond		Appelez-nous	-
1	G169612		Refr Door-white		Appelez-nous	-
1	G169612-08		Refr Door-avocado		Appelez-nous	-
2	5317511702		Nameplate		Appelez-nous	-
3	5303001022		Hinge Bearing, Upper		Appelez-nous	-
4	5303200272		Door Closer		Appelez-nous	-
5	3001020		Screw-closer Mtg		Appelez-nous	-
6	5303201811		Gasket-refrigerator		Appelez-nous	-
7	5303007739		Insulation, Bulk		Appelez-nous	-
8	G164986-02		Door Panel-inner		Appelez-nous	-
9	5316484216		Dairy Door		Appelez-nous	-
10	5315454139		Door Rack (4)		Appelez-nous	-
11	5315510407		Support-rh (4)		Appelez-nous	-
12	5315510307		Support-lh (4)		Appelez-nous	-
13	5308000790		Bumper, Light Switch				$ 3.86
14	218843801		Screw   (Replaces: 5303001001)				$ 14.41
15	5317566606		Handle-refr Door		Appelez-nous	-
16	5308011745		Screw				$ 10.38
17	5303001014		Handle - End Top		Appelez-nous	-
18	5303001015		Handle - End Bottom				$ 74.29
1A	5315230801		Plug - Door Bottom (non-illustrated)		Appelez-nous	-
2A	5315340760		Tape Nameplate (non-illustrated)		Appelez-nous	-
2B	5318837802		Label-nameplate (non-illustrated)		Appelez-nous	-
3A	5308012007		Hinge Bearing - Lower (non-illustrated)		Appelez-nous	-
8A	218843801		Screw   (Replaces: 5303001001)				$ 14.41

    View Diagram in Separate Window       Print Part List
