02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215846602		Timer-defrost   (Replaces: 5300187484)			Immediately	$ 28.20
2	5308017561		Box-control		Appelez-nous	-
3	5308000129		Socket-light				$ 62.16
4	5303001179		Bulb, Light		Appelez-nous	-
5	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
6	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
7	5303001260		Screw				$ 6.73
8	5308010380		Knob-cold Control		Appelez-nous	-
9	5308010253		Screw-box Mtg (2)		Appelez-nous	-
10	5308000068		Control-cold				$ 166.58
11	5308037932		Tube-plastic		Appelez-nous	-
12	5303001276		Ferrule, Inner		Appelez-nous	-
13	5303001277		Ferrule, Outer		Appelez-nous	-
14	5303001252		Box-damper Control		Appelez-nous	-
15	5308000771		Deflector-air		Appelez-nous	-
16	5308013429		Rivet-expansion		Appelez-nous	-
17	5316521701		Knob, Damper Control		Appelez-nous	-
18	5303001213		Support-special Barrel (6)		Appelez-nous	-
20	5316441928		Shield-light Refrigerator		Appelez-nous	-
22	3200803		Shield-light-freezer		Appelez-nous	-
23	5316465401		Cover, Fan		Appelez-nous	-
24	5303001179		Bulb, Light		Appelez-nous	-
25	218906802		Socket, Light   (Replaces: 5308000815)				$ 17.72
26	5308000124		Ring-fan Orifice				$ 53.58
27	218843801		Screw   (Replaces: 5303001001)				$ 14.41
28	5308000010		Fan			Immediately	$ 49.03
29	5300158289		Motor-blower			Immediately	$ 149.94
30	5308000107		Bracket-connector				$ 33.23
31	5303001227		Bracket-motor Mtg (rear)		Appelez-nous	-
32	5303001226		Bracket-motor Mtg (front)		Appelez-nous	-
33	5303210353		Screw-connector		Appelez-nous	-

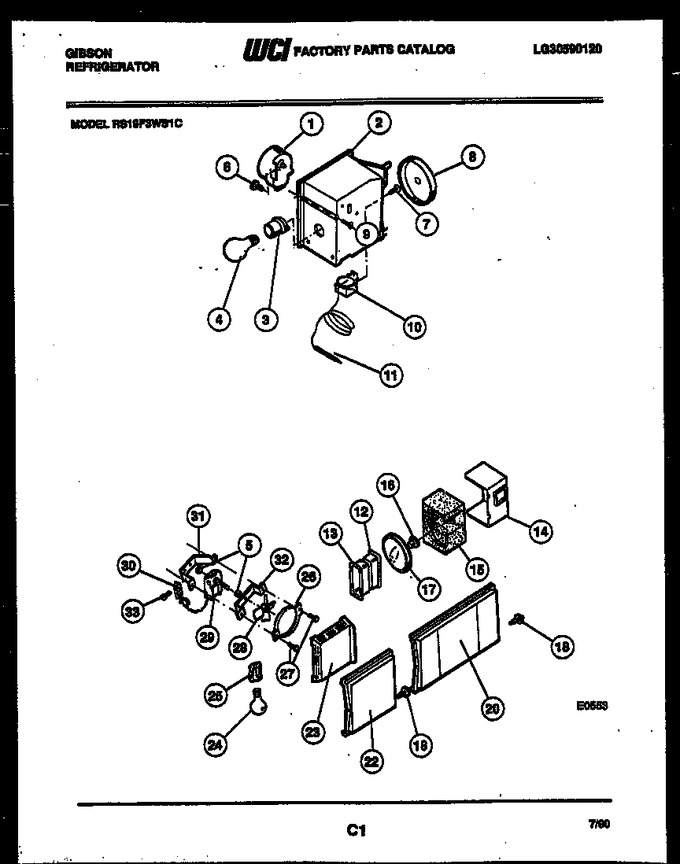

    View Diagram in Separate Window       Print Part List
