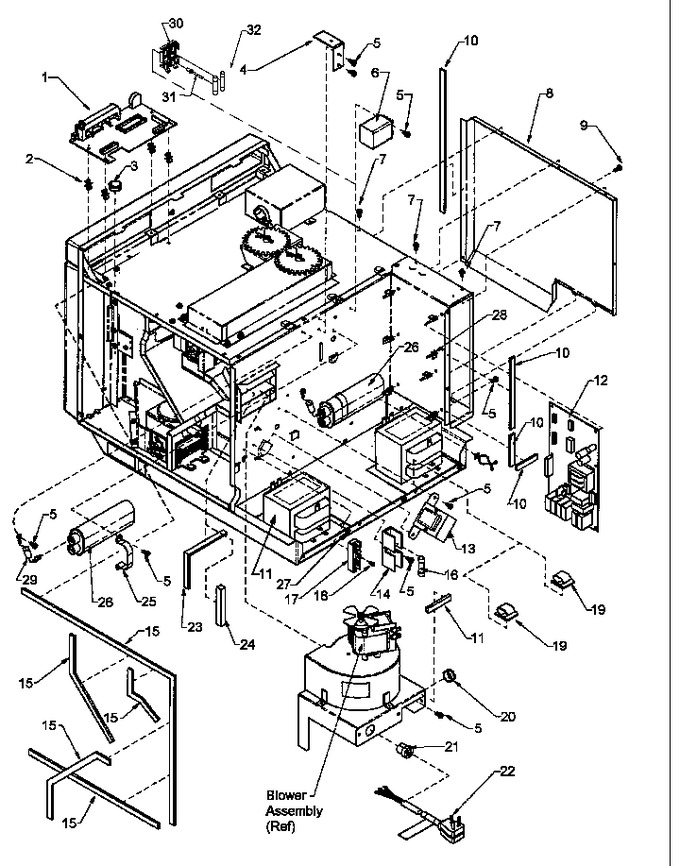

01 - Chassis Assy Parts


02 - Chassis Assy Parts


03 - Chassis Assy Parts


04 - Chassis Assy Parts


05 - Controls & Blower/triac Assemblies


06 - Door Assy


07 - Outercase Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10937212		L.v. Board		Appelez-nous	-
2	M0585505		Support		Appelez-nous	-
3	12164101		Grommet-rubber		Appelez-nous	-
4	10853001		Brkt, Wire Support		Appelez-nous	-
5	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
7	M0231717		Screw, Tf		Appelez-nous	-
8	R0156941		Assy, Exh Duct		Appelez-nous	-
9	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
10	A3030301		Gasket (inch)		Appelez-nous	-
11	10788609		Transformer-hv 230v 50 Hz		Appelez-nous	-
12	10763203		Board, H.v.		Appelez-nous	-
13	C8901508		Transformer, Auto		Appelez-nous	-
14	10091101		Fuse Holder		Appelez-nous	-
15	A3030330		Gasket,per Ft		Appelez-nous	-
16	14QBP25BAN		Fuse, 25 Amp   (Replaces: M0805201)		Appelez-nous	-
17	B5677203		Terminal Block		Appelez-nous	-
18	M0234117		Screw		Appelez-nous	-
19	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
20	A3293503		Snap Bushing		Appelez-nous	-
21	M0370009		Relief- Strain		Appelez-nous	-
22	B5669019		Cord-power		Appelez-nous	-
23	A3030302		Gasket		Appelez-nous	-
24	A3030311		Gasket-per Inch		Appelez-nous	-
25	A4055405		Strap, Capacitor		Appelez-nous	-
26	10366907		Capacitor		Appelez-nous	-
27	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
28	M0590602		Support P-c Bd A		Appelez-nous	-
29	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
30	12136501		Block-2 Pole Fuse		Appelez-nous	-
31	A4539601		Pop Rivet		Appelez-nous	-
32	ABC20		Fuse 20 Amp K   (Replaces: M0805101)			Immediately	$ 10.31
NI	10994401		Harness, Xfmr		Appelez-nous	-
NI	12085902		Harness-hi Voltage		Appelez-nous	-
NI	12137301		Harness-wiring		Appelez-nous	-
