01 - Chassis Assy Parts
02 - Chassis Assy Parts
03 - Chassis Assy Parts
04 - Chassis Assy Parts
05 - Controls & Blower/triac Assemblies
06 - Door Assy
07 - Outercase Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

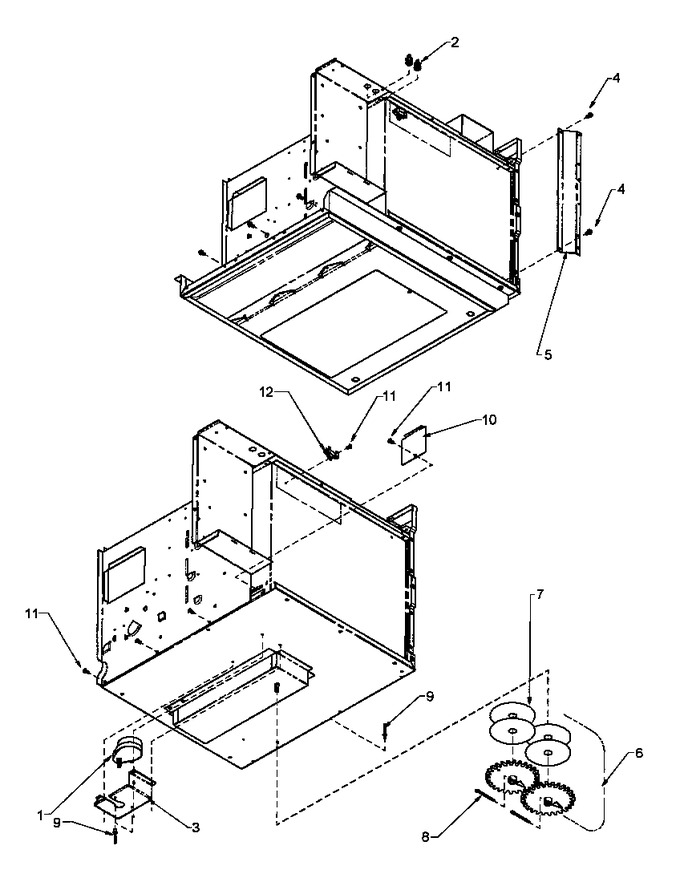

| 1 | R0154047 | Motor-antenna |
|
- | |||||
| 2 | M0325401 | Bushing,terminal |
|
- | |||||
| 3 | 10782201 | Brkt-motor Mtg |
|
- | |||||
| 4 | M0231717 | Screw, Tf |
|
- | |||||
| 5 | 10772401 | Brkt, Hinge Support |
|
- | |||||
| 6 | R0156917 | Kit, Gear |
|
- | |||||
| 7 | 10903001 | Washer, Spur Gear |
|
- | |||||
| 8 | M1200005 | Pin, Cotter |
|
- | |||||
| 9 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 10 | 10847601 | Plate, Partition |
|
- | |||||
| 11 | WP488234 | Screw (Replaces: M0234422) |
|
$ 6.07 | |||||
| 12 | B5795306 | Thermal Cutout |
|
- | |||||
| NI | 10979501 | Harness, Hi Voltage |
|
- |
