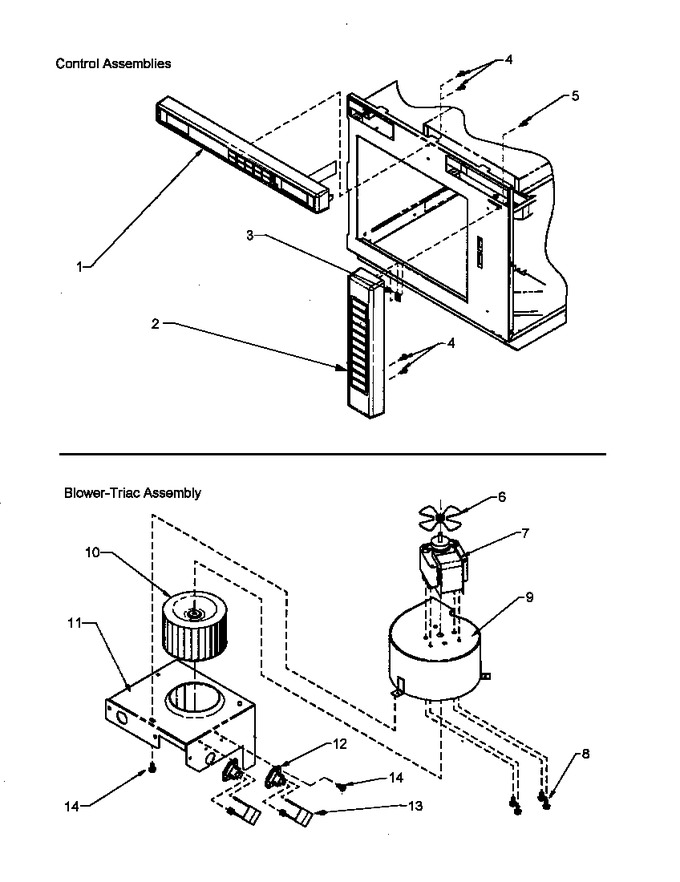

05 - Controls & Blower/triac Assemblies
06 - Door Assy
07 - Outercase Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R0156972 | Assy, Touch Panel |
|
- | |||||
| 2 | R0156975 | Assy, Touch Pnl- Side |
|
- | |||||
| 3 | M0288102 | Speed Nut |
|
- | |||||
| 4 | M0218118 | Screw |
|
- | |||||
| 5 | M0216517 | Screw |
|
- | |||||
| 6 | B5706703 | Fan Blade Motor |
|
- | |||||
| 7 | 10773303 | Motor- Blower |
|
- | |||||
| 8 | M0253916 | Screw |
|
- | |||||
| 9 | 10797202 | Weld, Scroll |
|
- | |||||
| 10 | C3670808 | Wheel, Blower |
|
- | |||||
| 11 | 10984008 | Bracket, Blower Scroll |
|
- | |||||
| 12 | D7681501 | Triac |
|
$ 44.05 | |||||
| 13 | 10172901 | Snubber Assembly |
|
- | |||||
| 14 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 |
