01 - Chassis Assy Parts


02 - Chassis Assy Parts


03 - Chassis Assy Parts


04 - Chassis Assy Parts


05 - Controls & Blower/triac Assemblies


06 - Door Assy


07 - Outercase Assy

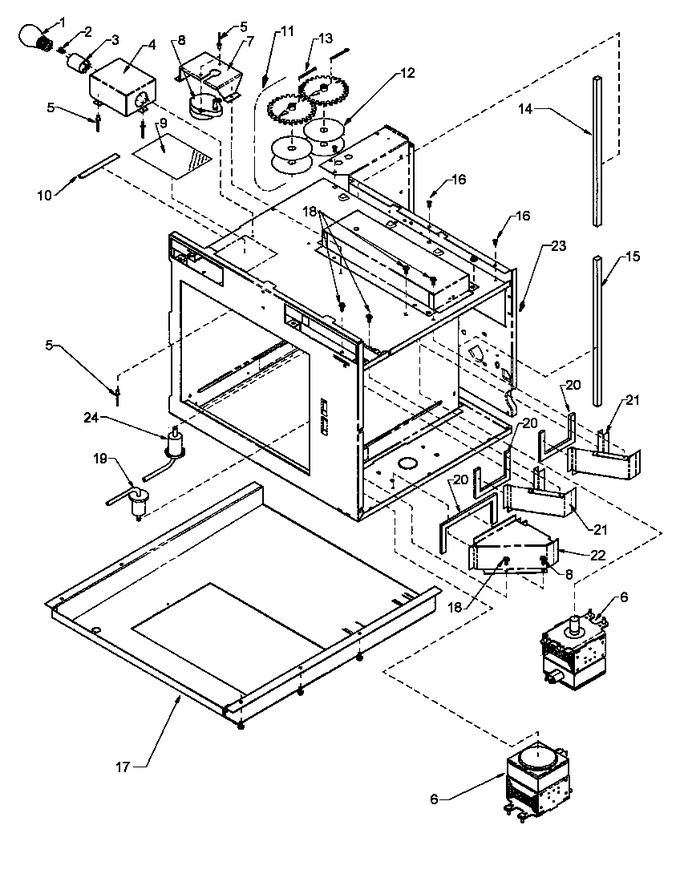

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67002552		Bulb, Light(240)   (Replaces: A0282802)			Immediately	$ 10.58
2	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
3	B8376801		Socket, Light		Appelez-nous	-
4	10782501		Brkt, Lamp		Appelez-nous	-
5	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
6	D7831006		Magnetron-t		Appelez-nous	-
7	10782202		Brkt-motor Mtg		Appelez-nous	-
8	R0154047		Motor-antenna		Appelez-nous	-
9	B8367702		Window, Oven Light		Appelez-nous	-
10	M0275035		Tape, Strapping		Appelez-nous	-
11	R0156917		Kit, Gear		Appelez-nous	-
12	10903001		Washer, Spur Gear		Appelez-nous	-
13	M1200005		Pin, Cotter		Appelez-nous	-
14	10966601		Gasket, Neoprene		Appelez-nous	-
15	A3030311		Gasket-per Inch		Appelez-nous	-
16	WP488234		Screw   (Replaces: M0234422)				$ 6.07
17	R0156924		Assy, Base Pan		Appelez-nous	-
18	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
19	12049502		Antenna Assembly		Appelez-nous	-
20	A3030330		Gasket,per Ft		Appelez-nous	-
21	R0156940		Assy, Top Exh Duct		Appelez-nous	-
22	R0156939		Assy, Bot Exh Duct		Appelez-nous	-
23	10768304		Panel-partition		Appelez-nous	-
24	12049501		Assy, Antenna		Appelez-nous	-
NI	10979301		Harness, Oven Lamp		Appelez-nous	-
