View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Chassis
02 - Chassis
03 - Chassis
04 - Controls
05 - Door/blower
06 - Electrical Components
07 - Magnetron/light
08 - Outercase
SELECT A DIAGRAM
New Model Search:

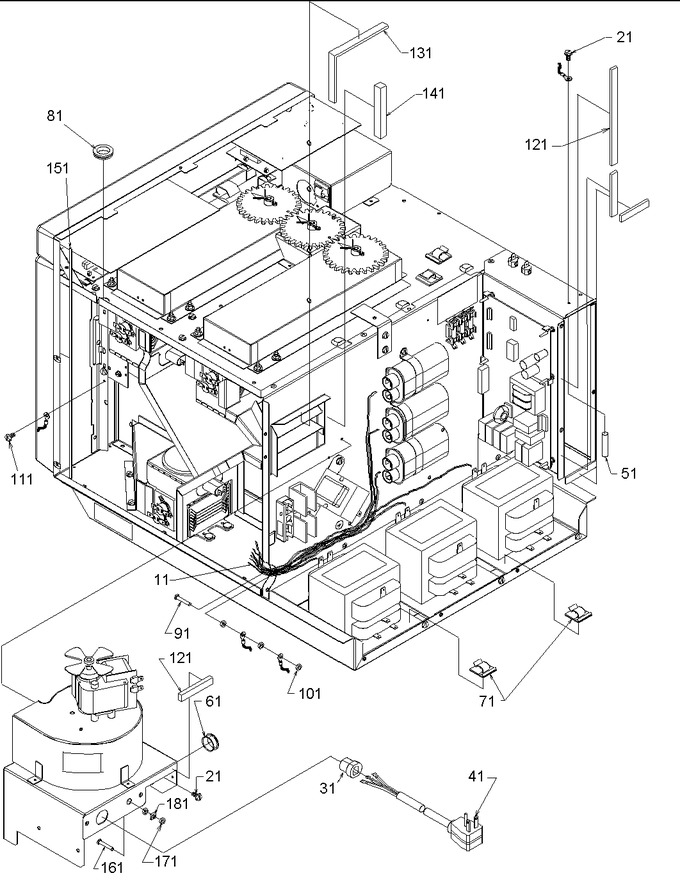

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 12086001 | Harness, Hi-volt |
|
- | |||||
| 21 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 31 | M0370009 | Relief- Strain |
|
- | |||||
| 41 | B5669025 | Cord-power |
|
- | |||||
| 51 | M0308801 | Cap, Protective-threaded (red) |
|
- | |||||
| 61 | A3293503 | Snap Bushing |
|
- | |||||
| 71 | WPM0104106 | Clip (Replaces: M0104106) |
|
$ 7.00 | |||||
| 81 | 12164101 | Grommet-rubber |
|
- | |||||
| 91 | M0293502 | Stud-self Clinch |
|
- | |||||
| 101 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 111 | M0231717 | Screw, Tf |
|
- | |||||
| 121 | A3030301 | Gasket (inch) |
|
- | |||||
| 131 | A3030302 | Gasket |
|
- | |||||
| 141 | A3030311 | Gasket-per Inch |
|
- | |||||
| 151 | M0275038 | Tape-strapping Per Roll |
|
- | |||||
| 161 | M0293507 | Stud- Sc |
|
- | |||||
| 171 | M0282021 | Nut-keps |
|
- | |||||
| 181 | 12152201 | Washer-u Type |
|
- |
