01 - Chassis


02 - Chassis


03 - Chassis


04 - Controls


05 - Door/blower


06 - Electrical Components


07 - Magnetron/light


08 - Outercase

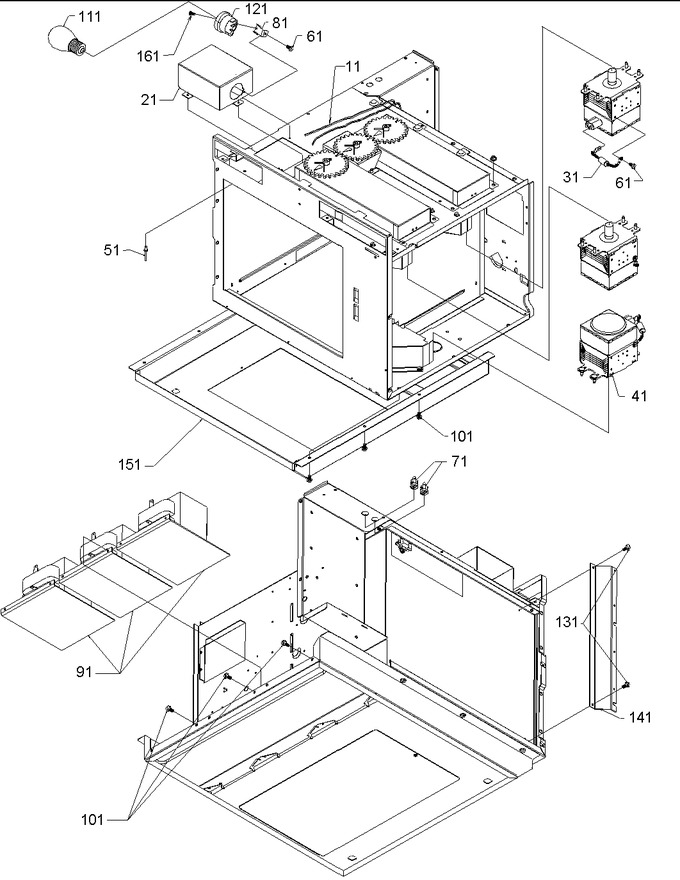

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10979301		Harness, Oven Lamp		Appelez-nous	-
21	10782501		Brkt, Lamp		Appelez-nous	-
31	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
41	D7831006		Magnetron-t		Appelez-nous	-
51	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
61	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
71	M0325401		Bushing,terminal		Appelez-nous	-
81	B8376701		Bracket, Light		Appelez-nous	-
91	10788609		Transformer-hv 230v 50 Hz		Appelez-nous	-
101	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
111	WP67002552		Bulb, Light(240)   (Replaces: A0282802)			Immediately	$ 10.58
121	B8376801		Socket, Light		Appelez-nous	-
131	M0231717		Screw, Tf		Appelez-nous	-
141	12189003		Bracket,hinge Support		Appelez-nous	-
151	10790302Q		Base Assy-gaskets, Access Pnl		Appelez-nous	-
161	WP59002061		Screwxxx   (Replaces: M0216616)				$ 6.98
