View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Chassis
02 - Chassis
03 - Chassis
04 - Controls
05 - Door/blower
06 - Electrical Components
07 - Magnetron/light
08 - Outercase
SELECT A DIAGRAM
New Model Search:

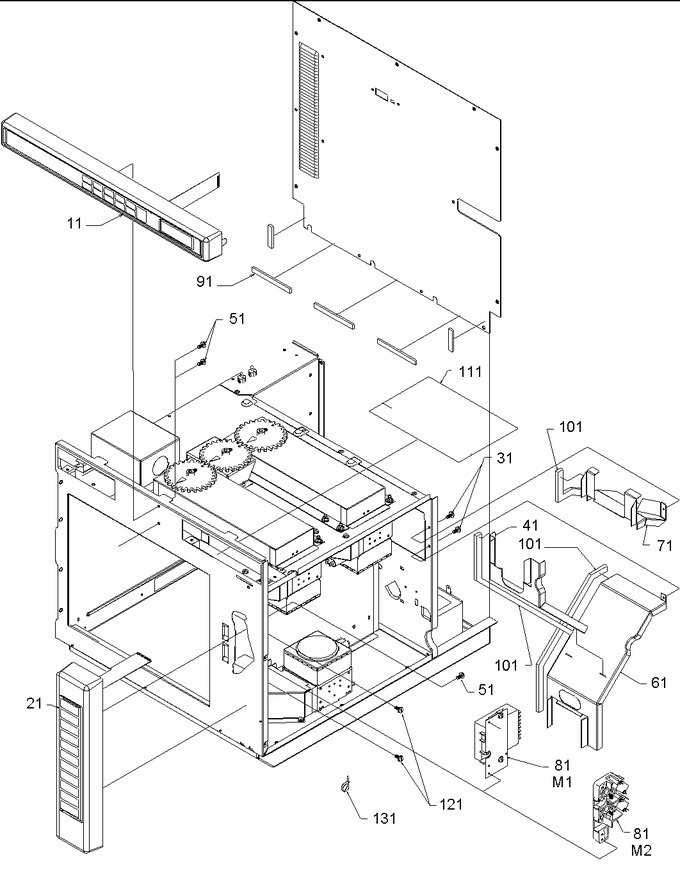

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | R0156972 | Assy, Touch Panel |
|
- | |||||
| 21 | R0156975 | Assy, Touch Pnl- Side |
|
- | |||||
| 31 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 41 | R0156988 | Top Divider Duct-w/gasket |
|
- | |||||
| 51 | M0231717 | Screw, Tf |
|
- | |||||
| 61 | R0156987 | Bottom Divider Duct-w/gasket |
|
- | |||||
| 71 | R0156986 | Rear Divider Duct-w/gasket |
|
- | |||||
| 81 | R0150155 | Kit, Interlock |
|
- | |||||
| 91 | A3030301 | Gasket (inch) |
|
- | |||||
| 101 | A3030330 | Gasket,per Ft |
|
- | |||||
| 111 | 12160601 | Shield-spill |
|
- | |||||
| 121 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 131 | M0321210 | Tie, Elec |
|
- |
