01 - Chassis
02 - Chassis
03 - Chassis
04 - Controls
05 - Door/blower
06 - Electrical Components
07 - Magnetron/light
08 - Outercase
SELECT A DIAGRAM
New Model Search:

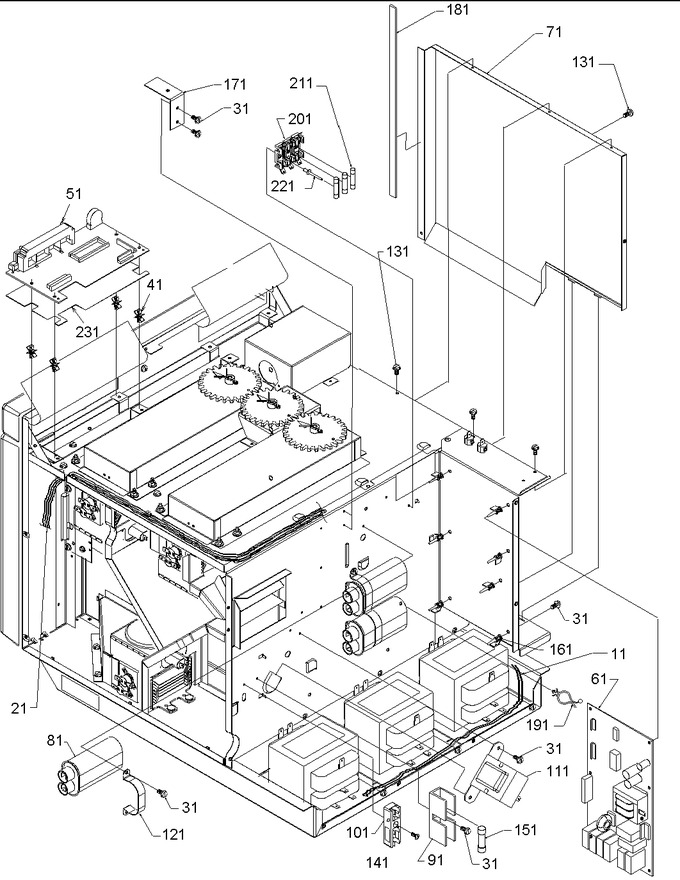

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 12495301 | Harness - Xfmr |
|
- | |||||
| 21 | 12495401 | Harness Oven |
|
- | |||||
| 31 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 41 | M0585505 | Support |
|
- | |||||
| 51 | 10937216 | Lv Board |
|
- | |||||
| 61 | 10763208 | Board, Hv |
|
- | |||||
| 71 | 10781901 | Duct, Exhaust |
|
- | |||||
| 81 | 10366908 | Capacitor |
|
- | |||||
| 91 | 10091101 | Fuse Holder |
|
- | |||||
| 101 | B5677203 | Terminal Block |
|
- | |||||
| 111 | C8901508 | Transformer, Auto |
|
- | |||||
| 121 | A4055406 | Strap, Capacitor |
|
- | |||||
| 131 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 141 | M0234117 | Screw |
|
- | |||||
| 151 | 14QBP25BAN | Fuse, 25 Amp (Replaces: M0805201) |
|
- | |||||
| 161 | M0590602 | Support P-c Bd A |
|
- | |||||
| 171 | 10853001 | Brkt, Wire Support |
|
- | |||||
| 181 | A3030301 | Gasket (inch) |
|
- | |||||
| 191 | DC61-40081A | Tie, Wire (Replaces: M0585401) |
|
$ 0.85 | |||||
| 201 | 12136502 | Block-3 Pole Fuse |
|
- | |||||
| 211 | ABC20 | Fuse 20 Amp K (Replaces: M0805101) |
|
Immediately | $ 10.31 | ||||
| 221 | A4539601 | Pop Rivet |
|
- | |||||
| 231 | 12160801 | Barrier-lv Board |
|
- |
