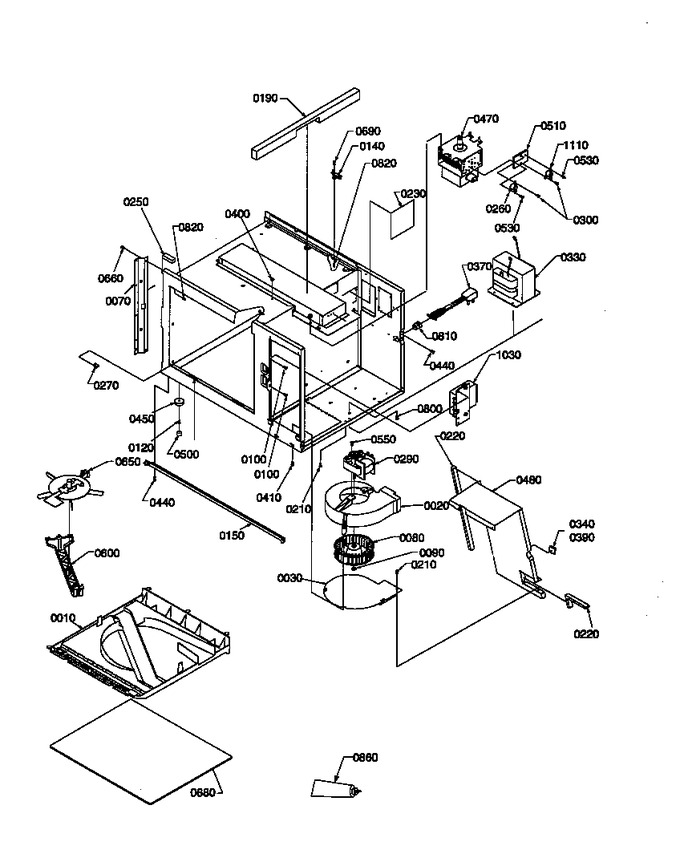

01 - Cabinet Assy (m1, M2, M3, & M4 Only)
02 - Door Assy
03 - Light/control Panel Assy
04 - Transformer/outer Cabinet Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | D7692501 | Grease Shield |
|
- | |||||
| 20 | D7684601 | Scroll, Blower |
|
- | |||||
| 30 | C8942501 | Brkt Scroll |
|
- | |||||
| 70 | C8935901 | Brkt,hinge Support |
|
- | |||||
| 80 | C8793501 | Blower Wheel |
|
- | |||||
| 90 | WP3195558 | Clip-blwr Ret (Replaces: M0118903) |
|
$ 7.68 | |||||
| 100 | M0231717 | Screw, Tf |
|
- | |||||
| 120 | A4539625 | Pop Rivet |
|
- | |||||
| 140 | B5795305 | Fuse, Thermal |
|
- | |||||
| 150 | C8943602 | Trim |
|
- | |||||
| 190 | B8369901 | Gasket, Oven Top |
|
- | |||||
| 210 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 220 | A3030302 | Gasket |
|
- | |||||
| 230 | B8367701 | Window, Oven Light |
|
- | |||||
| 250 | A3030301 | Gasket (inch) |
|
- | |||||
| 260 | B5684105 | Thermal Protector K |
|
- | |||||
| 270 | B8374901 | Support, Shelf |
|
- | |||||
| 290 | D7670301 | Motor, Blower |
|
- | |||||
| 300 | M0229916 | Screw T.c |
|
- | |||||
| 330 | D7686903 | Transformer |
|
- | |||||
| 340 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 370 | 10098901 | Power Cord |
|
- | |||||
| 390 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 400 | M0288808 | Nut |
|
- | |||||
| 410 | M0254706 | Screw |
|
- | |||||
| 440 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 450 | B5732506 | Foot O.c. Wrapper |
|
- | |||||
| 470 | 10794402 | Magnetron |
|
$ 196.92 | |||||
| 480 | D7685409 | Blower Partition,black E Ct |
|
- | |||||
| 500 | C8965402 | Plug,foot |
|
- | |||||
| 510 | B8380601 | Plate, Thermal Cutout |
|
- | |||||
| 530 | M0232012 | Screw |
|
- | |||||
| 550 | M0213123 | Screw |
|
- | |||||
| 600 | D7685502 | Cradle, Antenna |
|
- | |||||
| 650 | C8943002 | Assy, Antenna |
|
- | |||||
| 660 | M0231704 | Screw, Tf |
|
- | |||||
| 680 | C8936903 | Tray-glass Floor |
|
- | |||||
| 690 | WPW10068250 | Screw (Replaces: M0234029) |
|
$ 3.66 | |||||
| 800 | WP3390631 | Screw (Replaces: M0216729) |
|
$ 7.04 | |||||
| 810 | M0370003 | Strain Relief |
|
- | |||||
| 820 | M0308801 | Cap, Protective-threaded (red) |
|
- | |||||
| 860 | W10841140 | Sealer (Replaces: M0275598) |
|
Immediately | $ 24.92 | ||||
| 1030 | 10985002 | Kit, Interlock |
|
- | |||||
| 1110 | B5684113 | Protector, Thermal |
|
- |
