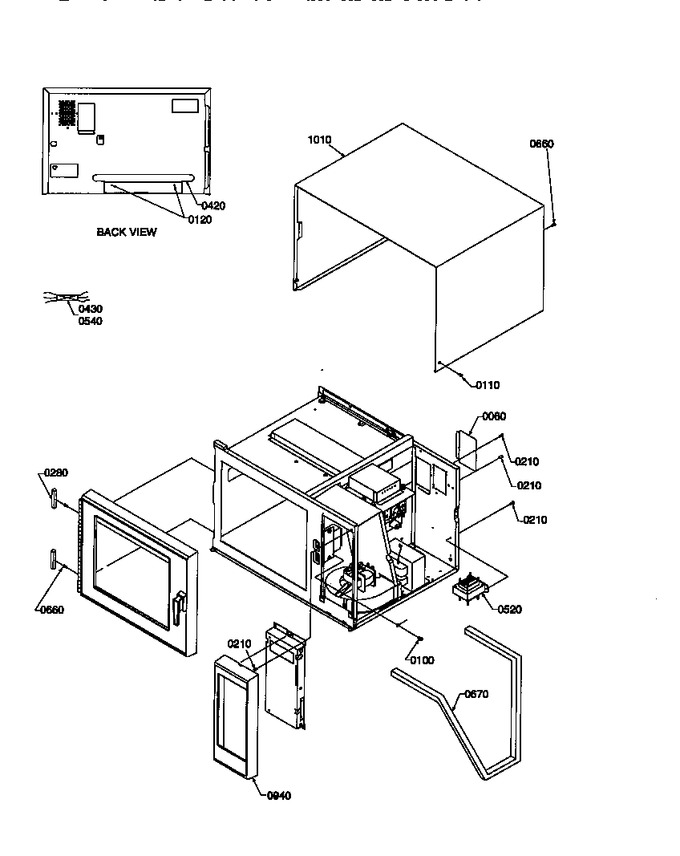

04 - Transformer/outer Cabinet Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 60 | B8370701 | Cover, Light |
|
- | |||||
| 100 | M0231717 | Screw, Tf |
|
- | |||||
| 110 | M0215116 | Screw |
|
- | |||||
| 120 | A4539625 | Pop Rivet |
|
- | |||||
| 210 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 280 | A3263904 | Gasket |
|
- | |||||
| 420 | C8962102 | Cord Ret-deburred |
|
- | |||||
| 520 | C8807814 | Transformer, Filament |
|
- | |||||
| 540 | 10203401 | Harness, Oven |
|
- | |||||
| 660 | M0231704 | Screw, Tf |
|
- | |||||
| 670 | A3263907 | Gasket - Each |
|
- | |||||
| 940 | D7704515 | Escut, Control (black) |
|
- | |||||
| 1010 | D7684909 | Wrapper O.c. (black) |
|
- |
