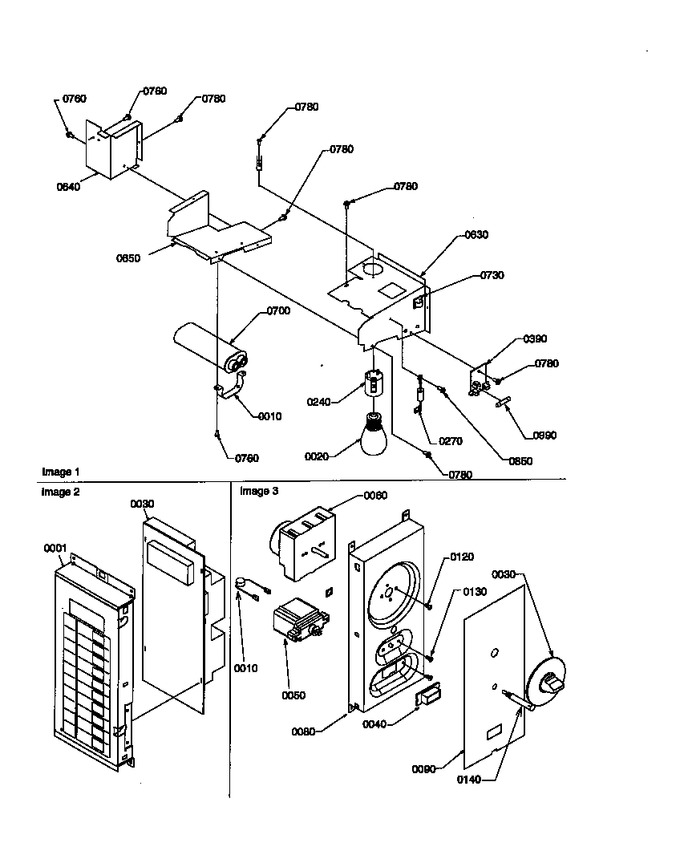

01 - Cabinet Assy (m1, M2, M3, & M4 Only)
02 - Door Assy
03 - Light/control Panel Assy
04 - Transformer/outer Cabinet Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R0163275 | Keyboard Assy |
|
- | |||||
| 10 | A4055405 | Strap, Capacitor |
|
- | |||||
| 20 | 8009 | Lamp 41w (Replaces: 10664502) |
|
Immediately | $ 16.80 | ||||
| 30 | 10015809 | Pc Board Assy (Replaces: R0163195) |
|
$ 299.99 | |||||
| 240 | B8371401 | Receptacle, Lamp |
|
- | |||||
| 270 | 11QBP0527 | Rectifier (Replaces: B8383101) |
|
$ 18.64 | |||||
| 390 | C8988702 | Terminal Board |
|
- | |||||
| 630 | D7772005 | Duct, Top Air |
|
- | |||||
| 640 | D7772101 | Shield, Light |
|
- | |||||
| 650 | D7772202 | Air Duct. Bottom |
|
- | |||||
| 700 | WP59001168 | Capacitor-1.00 (Replaces: D8547918) |
|
Immediately | $ 208.35 | ||||
| 730 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 760 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 780 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 850 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 990 | ABC20 | Fuse 20 Amp K (Replaces: M0805101) |
|
Immediately | $ 10.31 |
