01 - Cabinet Assy (m1, M2, M3, & M4 Only)

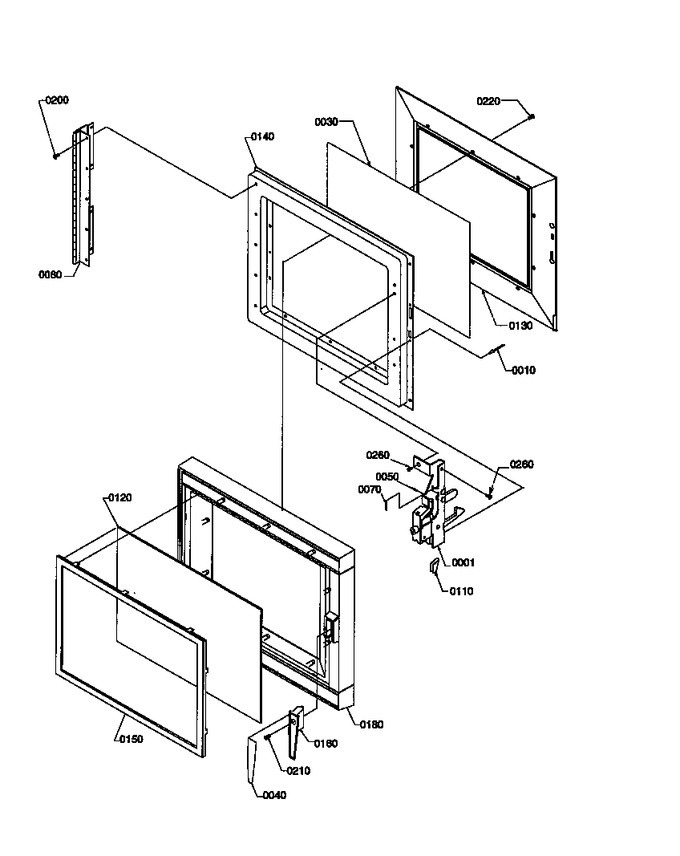

02 - Door Assy


03 - Light/control Panel Assy


04 - Transformer/outer Cabinet Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0150122		Latch Assy		Appelez-nous	-
10	A4539601		Pop Rivet		Appelez-nous	-
30	B8371202		Window, Inner		Appelez-nous	-
40	B8378901		Ins Hdl		Appelez-nous	-
50	B8379201		Pin, Latch		Appelez-nous	-
70	C8893502		Spring, Door Latch		Appelez-nous	-
80	C8936213		Hinge, Door (black)		Appelez-nous	-
110	C8991301		Pad-latch Assy		Appelez-nous	-
120	C8965302		Window		Appelez-nous	-
130	D7683505		Door, Inner V		Appelez-nous	-
140	D7683713		Kit, Weldment-inner Door		Appelez-nous	-
150	D7716001		Retainer, Lens		Appelez-nous	-
160	D7741501		Handle Front		Appelez-nous	-
180	D7755402		Door, Blk Outer V		Appelez-nous	-
200	M0234403		Screw		Appelez-nous	-
210	W11227370		Screw   (Replaces: M0234030)			Immediately	$ 12.78
220	489392		Screw-``y``drive Headxxx   (Replaces: M0237618)				$ 12.02
260	WP59002061		Screwxxx   (Replaces: M0216616)				$ 6.98
