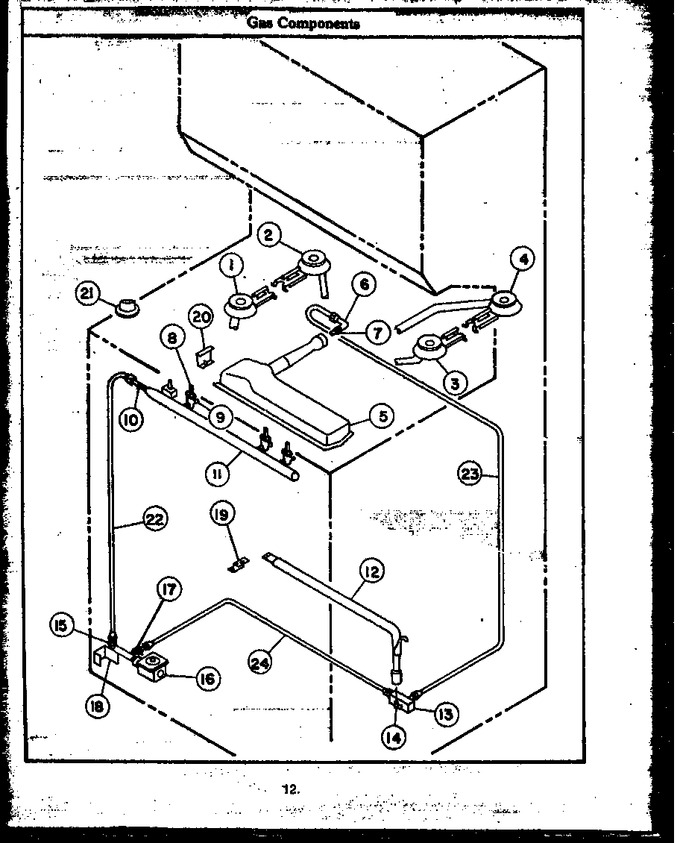

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y74379		Burner Assembly-left Front		Appelez-nous	-
2	Y74377		Burner Assembly-left Rear		Appelez-nous	-
3	74378		Burner Assembly-right Front		Appelez-nous	-
4	74376		Burner Assembly-right Rear		Appelez-nous	-
5	68005		Burner, Ultra-ray Broiler				$ 313.10
6	70356		O-ring		Appelez-nous	-
7	Y0095632		Orifice Ultra Ray Burner 56		Appelez-nous	-
7	0097241		Orifice		Appelez-nous	-
8	Y70568		Valve, Top Burner W/hood Univ.		Appelez-nous	-
9	0097617		Hood Orif Nbr 54		Appelez-nous	-
10	Y0097459		Straight Connector		Appelez-nous	-
11	70591		Trim, Handle Spacer		Appelez-nous	-
12	72488		Oven Burner-lower		Appelez-nous	-
13	68022		Gas Valve, Electric Univ.				$ 39.99
14	Y97640		Orifice Hood Univ.		Appelez-nous	-
15	72129		Straight Connector 3/8`` Fl. X				$ 17.39
16	65452		Pressure Regulator		Appelez-nous	-
17	74440		Valve, Shut Off		Appelez-nous	-
18	Y66383		Pipe Nipple Assembly		Appelez-nous	-
19	DE81-06773A		Mounting Bracket, Oven Burner   (Replaces: 72212)				$ 285.15
20	Y0092949		Broil Burner Mtg Bracket		Appelez-nous	-
21	Y64244		Knob, Top Burner		Appelez-nous	-
21	Y64250		Knob, Oven Control		Appelez-nous	-
21	64242		Knob, Selector				$ 106.72
22	Y72096		Tubing W/fittings-inlet Manifo		Appelez-nous	-
23	Y69983		Tubing W/fittings-gas Valve To		Appelez-nous	-
24	69930		Tubing W/fittings-inlet To Gas		Appelez-nous	-
