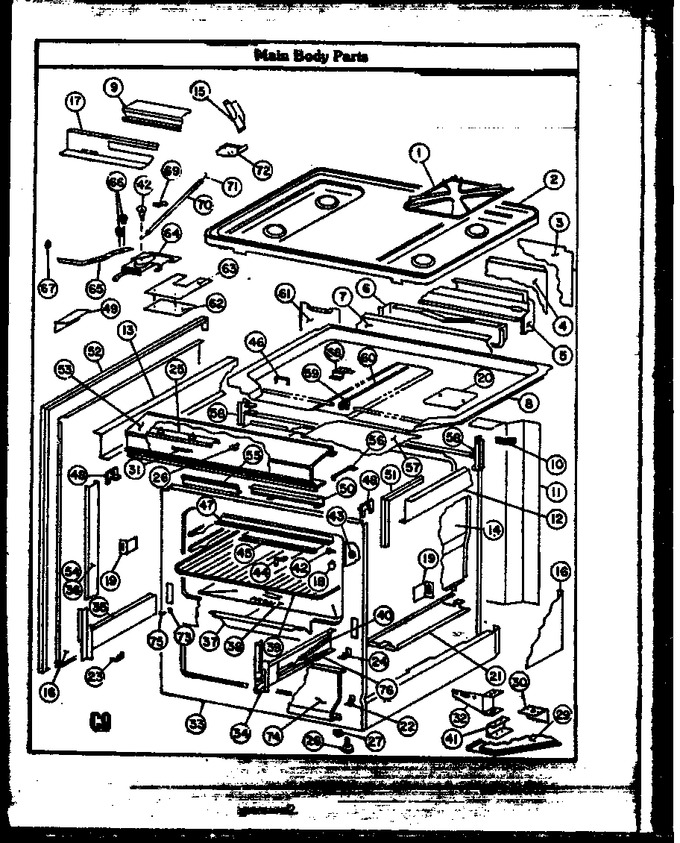

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0089314		Set Of 4 Pcs. 07517400 Grate		Appelez-nous	-
1	67909		Grate, Top Burner				$ 82.99
2	74340C		Main Top, Dark Copper		Appelez-nous	-
2	74340N		Main Top, Almond		Appelez-nous	-
2	74340V		Main Top, Avocado		Appelez-nous	-
2	74340F		Main Top, Snow White		Appelez-nous	-
2	74340D		Main Top, Gold		Appelez-nous	-
3	79896		Rear Cover Plate		Appelez-nous	-
4	79462		Heat Shield, Dilution Flue Box		Appelez-nous	-
5	79445		Flue Box, Dilution		Appelez-nous	-
6	79446		Flue Box, Inner		Appelez-nous	-
7	Y79399		Front, Inner Flue Box		Appelez-nous	-
8	70912-3		Burner Box, Gray		Appelez-nous	-
9	78461		Pylon Cap		Appelez-nous	-
10	Y92975		Gusset, Main Back		Appelez-nous	-
11	69890		Main Back		Appelez-nous	-
12	77357N		Top Inside Trim, R.h.,almond		Appelez-nous	-
12	77357F		Top Inside Trim, R.h., Snow Wh		Appelez-nous	-
12	77357V		Top Inside Trim, R.h., Avocado		Appelez-nous	-
12	77357C		Top Inside Trim, R.h., Dark Co		Appelez-nous	-
12	77357D		Top Inside Trim, R.h., Gold		Appelez-nous	-
13	77358V		Top Inside Trim, L.h.,avocado		Appelez-nous	-
13	77358N		Top Inside Trim, L.h., Almond		Appelez-nous	-
13	77358D		Top Inside Trim, L.h., Gold		Appelez-nous	-
13	77358F		Top Inside Trim, L.h., Snow Wh		Appelez-nous	-
13	77358C		Top Inside Trim, L.h., Dark Co		Appelez-nous	-
14	Y70057		Insulation Retainer, Side		Appelez-nous	-
15	70925		Shield, Terminal Block		Appelez-nous	-
16	93171V		End Panel, Avocado		Appelez-nous	-
16	93171F		End Panel, Snow White		Appelez-nous	-
16	93171D		End Panel, Gold		Appelez-nous	-
16	Y093171C		Main End Dark Copper		Appelez-nous	-
16	93171N		End Panel, Almond		Appelez-nous	-
17	75233		Plug		Appelez-nous	-
18	79758		Cover Plate		Appelez-nous	-
19	79875		Retainer, Hinge, Right Hand		Appelez-nous	-
20	Y73887		Cover Plate - Orifice		Appelez-nous	-
21	72199		Floor Shield-heat Baffle		Appelez-nous	-
22	79822		Bracket, Front Trim, Right Han		Appelez-nous	-
23	79821		Bracket, Front Trim, Left Hand		Appelez-nous	-
24	78183		Mounting Bracket Access Panel		Appelez-nous	-
25	70924		Actuator		Appelez-nous	-
26	70922		Cam		Appelez-nous	-
27	R203		Nut, Snap - In   (Replaces: 76204)			Immediately	$ 91.14
28	76205		Leveling Leg		Appelez-nous	-
29	79474		Shield, Timer Control		Appelez-nous	-
30	Y68698		Cover, Timer		Appelez-nous	-
31	70919		Spring		Appelez-nous	-
32	DD81-03929A		Bracket, Gas Valve Assembly   (Replaces: 72057)				$ 167.26
33	Y68007		Main Body Assembly		Appelez-nous	-
34	0092619		Hinge Less Spring Rh		Appelez-nous	-
35	Y0092618		Hinge Less Spring Lh		Appelez-nous	-
36	70552S		Front Inside Trim-l.h.		Appelez-nous	-
37	67008		Radiation Shield & Floor Shiel		Appelez-nous	-
38	79913-3		Sub 79913cg, Oven Bottom Assy		Appelez-nous	-
39	79932		Rack, Oven		Appelez-nous	-
40	79808		Spring-upper, Oven Door		Appelez-nous	-
41	68675		Bracket Main Disconnect		Appelez-nous	-
42	79431		Screw, Shoulder		Appelez-nous	-
43	M0282009		Nut, 10-24 Hex Keps   (Replaces: Y0097904)				$ 12.06
44	67053		Clip, Thermostat Bulb				$ 71.06
45	79883		Heat Shield, Oven Top		Appelez-nous	-
46	1N4004		Grounding Bracket, Electrode   (Replaces: 70928)		Appelez-nous	-
47	75007		Strap		Appelez-nous	-
48	Y76627		Bracket, Control Panel Mountin		Appelez-nous	-
49	Y76334		Terminal Cover		Appelez-nous	-
50	70609		Filler Piece, Front				$ 166.09
51	68789		Trim Rail, R.h.				$ 290.31
52	68790		Trim Rail, L.h.				$ 290.31
53	Y65253		Control Panel		Appelez-nous	-
55	70611		Filler Trim Support		Appelez-nous	-
56	79782		Mounting Bracket, Latch		Appelez-nous	-
57	79857		Insulation Retainer, Top		Appelez-nous	-
58	Y0092944		Rear Mtg Trim Bracket		Appelez-nous	-
59	77590		Side Angle		Appelez-nous	-
60	Y73886		Rod, Support		Appelez-nous	-
61	78756		Vertical Air Duct		Appelez-nous	-
62	79635		Millboard, Latch Assembly, Low		Appelez-nous	-
63	79790		Millboard, Latch Assembly, Upp		Appelez-nous	-
64	79791		Latch Assembly, Oven Door		Appelez-nous	-
65	69227		Latch Arm		Appelez-nous	-
66	78780		Screw, Handle Mounting		Appelez-nous	-
67	78750		Knob, Latch Arm		Appelez-nous	-
68	70914		Mtg. Brkt., Top Burner, Right		Appelez-nous	-
68	70913		Mtg. Brkt., Top Burner, Left H		Appelez-nous	-
69	93796		Clamp, Trim Wire Tube		Appelez-nous	-
70	79660		Tube, Trim Wire		Appelez-nous	-
71	79662		Trip, Wire, Micro Switch		Appelez-nous	-
72	79429		Mounting Plate, Door Latch, Mi		Appelez-nous	-
73	78414		Clip, ``u`` Type Hinge Mounting		Appelez-nous	-
74	65289N		Access Panel Assembly, Almond		Appelez-nous	-
74	65289F		Access Panel Assembly, Snow Wh		Appelez-nous	-
74	65289V		Access Panel Assembly, Avocado		Appelez-nous	-
74	65289C		Acces Panel Assembly, Dark Cop		Appelez-nous	-
74	65289D		Access Panel Assembly, Gold		Appelez-nous	-
75	79358		Screw, Door Assembly		Appelez-nous	-
76	69486		Spring-lower, Oven Door				$ 10.44
NI	70553S		Front Inside Trim-r.h.		Appelez-nous	-
