SELECT A DIAGRAM

01 - Gas Components


02 - Lower Oven Electrical Components


03 - Microwave Oven Components


04 - Oven Door Parts


05 - Page 1


06 - Upper Control Panel Parts


07 - Upper Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68597		Brace, Upper Oven-l.h.		Appelez-nous	-
2	Y68596		Brace, Upper Oven-r.h.		Appelez-nous	-
3	Y64184		Decorative Trim, Lower		Appelez-nous	-
4	78043		Trim Rail, Side Braces		Appelez-nous	-
5	77996F		Inside Brace-r.h., Snow White		Appelez-nous	-
5	77996D		Inside Brace-r.h., Gold		Appelez-nous	-
5	77996C		Inside Brace-r.h., Dark Copper		Appelez-nous	-
5	77996N		Inside Brace-r.h., Almond		Appelez-nous	-
5	77996V		Inside Brace-r.h., Avocado		Appelez-nous	-
6	77997F		Inside Side Brace-l.h., Snow W		Appelez-nous	-
6	77997D		Inside Side Brace-l.h., Gold		Appelez-nous	-
6	77997N		Inide Side Brace-l.h., Almond		Appelez-nous	-
6	77997V		Inside Side Brace-l.h., Avocad		Appelez-nous	-
6	77997C		Inside Side Brace-l.h., Dark C		Appelez-nous	-
7	68243		Support, Upper Oven-r.h.		Appelez-nous	-
8	68244		Support, Upper Oven-l.h.				$ 39.22
9	Y64177		Jacket Bottom, Gray		Appelez-nous	-
10	0095909		Glass Splash Plate		Appelez-nous	-
11	78083V		Splashplate, Avocado		Appelez-nous	-
11	78083D		Splashplate, Gold		Appelez-nous	-
11	78083C		Splashplate, Dark Copper		Appelez-nous	-
11	78083F		Splashplate, Snow White		Appelez-nous	-
11	78083N		Splashplate, Almond		Appelez-nous	-
12	74094		Filler Strip			Immediately	$ 10.42
13	Y64182		Mounting Channel, Left		Appelez-nous	-
14	Y64183		Mounting Channel, Right		Appelez-nous	-
15	63934		Oven Top		Appelez-nous	-
16	Y64179		Shelf, Upper Oven		Appelez-nous	-
17	68779V		End Panel, Middle, R.h., Avoca		Appelez-nous	-
17	68779C		End Panel, Middle, R.h., Dark		Appelez-nous	-
17	68779D		End Panel, Middle, R.h., Gold		Appelez-nous	-
17	68779F		End Panel, Middle, R.h., Snow		Appelez-nous	-
17	68779N		End Panel, Middle, R.h., Almon		Appelez-nous	-
18	68780D		End Panel, Middle, L.h-, Gold		Appelez-nous	-
18	68780C		End Panel, Middle, L.h-, Dark		Appelez-nous	-
18	78780V		End Panel, Middle, L.h-, Avoc		Appelez-nous	-
18	68780N		End Panel, Middle, L.h-, Almon		Appelez-nous	-
18	68780F		End Panel, Middle, L.h-, Snow		Appelez-nous	-
19	63933		Cover, Microwave Vent		Appelez-nous	-
20	Y64185		Trim Frame, Outer		Appelez-nous	-
21	Y63727		Air Jacket, Rear		Appelez-nous	-
22	64180C		Jacket End-, Dark Copper		Appelez-nous	-
22	64180N		Jacket End-, Almond		Appelez-nous	-
22	64180V		Jacket End-, Avocado		Appelez-nous	-
22	64180F		Jacket End-, Snow White		Appelez-nous	-
22	64180D		Jacket End-, Gold		Appelez-nous	-
23	Y64186		Channel, Vent		Appelez-nous	-
24	67028		Backplate				$ 15.90
25	Y64181		Jacket Top		Appelez-nous	-
26	73060		Oven Vent			Immediately	$ 24.25
NI	69185		Label, Warning				$ 48.20

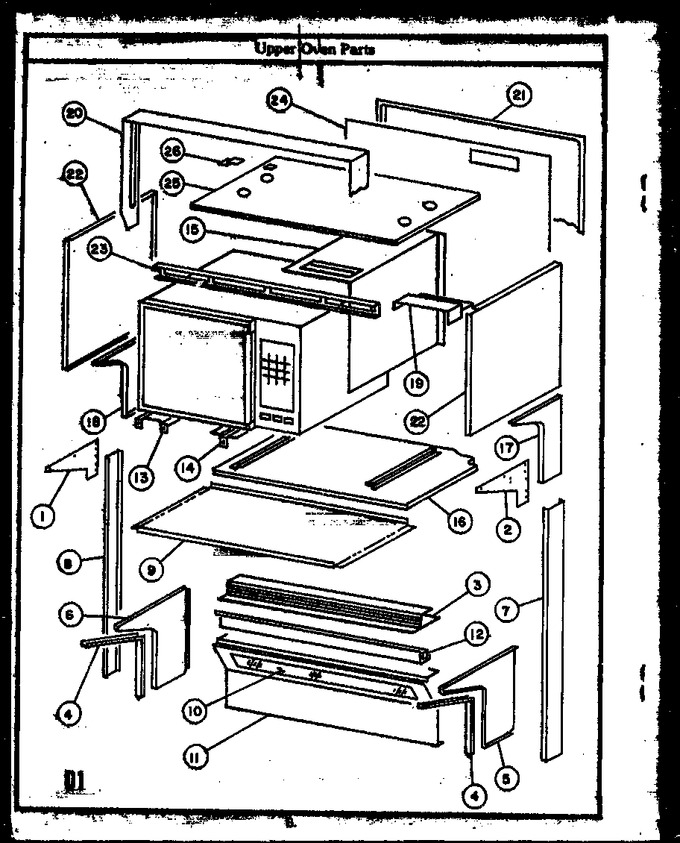

    View Diagram in Separate Window       Print Part List
