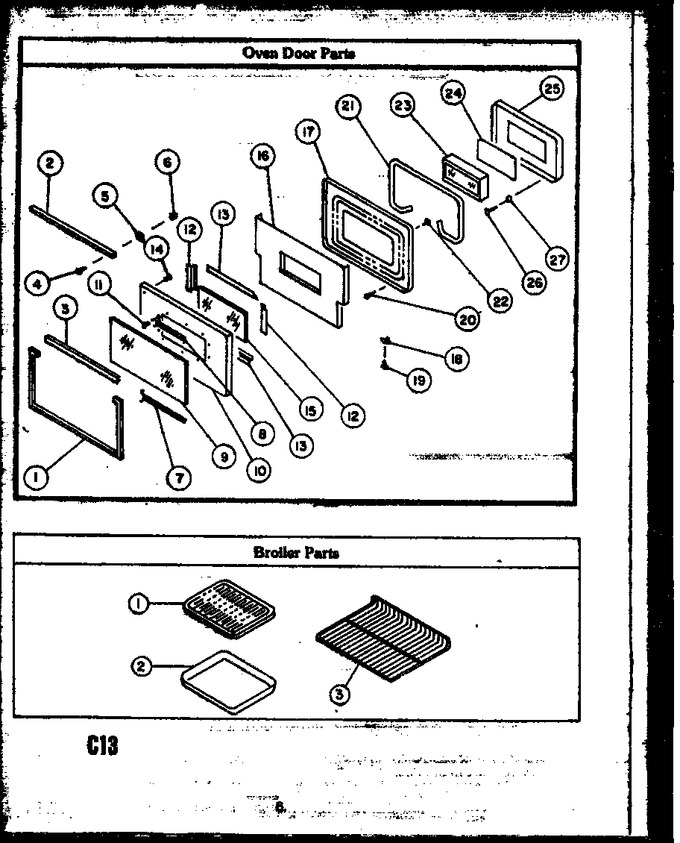

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 66192 | Trim, Frame |
|
- | |||||
| 1 | Y0095943 | Use 304451e |
|
- | |||||
| 2 | 95944-3 | Pan, Broiler, Gray |
|
- | |||||
| 2 | 70181 | Handle, Oven Door (Replaces: 68150) |
|
Immediately | $ 89.99 | ||||
| 3 | 79932 | Rack, Oven |
|
- | |||||
| 3 | 70591 | Trim, Handle Spacer |
|
- | |||||
| 4 | Y67998 | Screw, Handle |
|
- | |||||
| 5 | 79978 | Spacer |
|
- | |||||
| 6 | WP488130 | Nut K (Replaces: Y0097886) |
|
$ 6.27 | |||||
| 7 | 66914 | Bumper, Glass - Bottom Trim |
|
$ 5.78 | |||||
| 8 | 68115 | Bumper, Glass - Top Trim |
|
$ 93.49 | |||||
| 9 | DE81-08391A | Panel, Black Glass (Replaces: 66178) |
|
$ 69.67 | |||||
| 10 | 66183 | Outer Panel, Oven Door |
|
- | |||||
| 11 | Y0093312 | Pop Rivet, Black |
|
- | |||||
| 12 | Y66180 | Glass Channel-short |
|
- | |||||
| 13 | Y66181 | Glass Channel-long |
|
- | |||||
| 14 | Y0097821 | Rivet, Pop |
|
- | |||||
| 15 | DE81-06811A | Glass, Heat Barrier (Replaces: 66179) |
|
$ 38.04 | |||||
| 16 | 66166 | Retainer, Insulation |
|
- | |||||
| 17 | 70446-3 | Backer, Oven Door, Gray |
|
- | |||||
| 18 | 79777 | Catch, Oven Door |
|
- | |||||
| 19 | Y0092378 | Screw 10-24x1/4 Ph Trus |
|
- | |||||
| 20 | DE81-10123A | Screw, Sub-backer To Backer (Replaces: 72898) |
|
$ 209.76 | |||||
| 21 | 0090542 | S/c Gas Range Door Gasket Kit |
|
- | |||||
| 22 | 69372 | Screw, Door Assembly |
|
Immediately | $ 61.24 | ||||
| 23 | 66169 | Window Assembly |
|
$ 374.79 | |||||
| 24 | DE81-10110A | Gasket, Window Assembly (Replaces: 66171) |
|
$ 118.85 | |||||
| 25 | 66173-3 | Sub-backer, Oven Door |
|
- | |||||
| 26 | Y0092373 | Screw, No.6-20 X .375 Panhd(blk) |
|
- | |||||
| 27 | Y97977 | Washer, Window To Sub-backer |
|
- |
