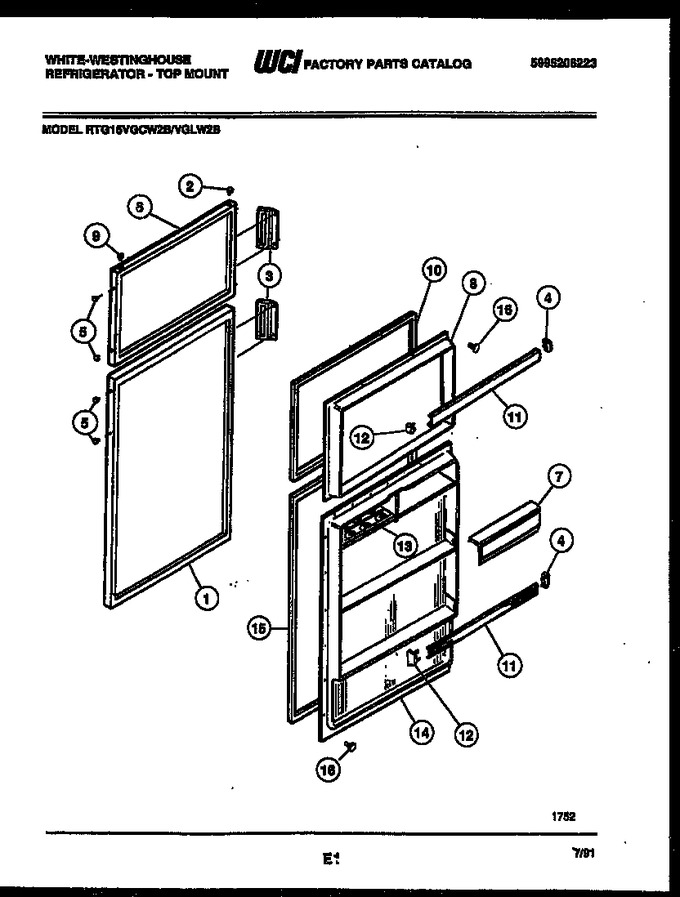

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303916729 | Panel-refr-white |
|
- | |||||
| 2 | 5308000134 | Plug Button, White (2) |
|
$ 5.62 | |||||
| 3 | 3016493 | Handle-white |
|
$ 88.88 | |||||
| 4 | 5317689101 | End Cap - Rh (3) |
|
- | |||||
| 5 | 240494001 | Plug Button-white (4) (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 6 | 5303916724 | Panel-frzr-white |
|
- | |||||
| 7 | 5318641402 | Dairy Door |
|
- | |||||
| 8 | 5318646301 | Panel - Inner Freezer |
|
- | |||||
| 9 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 10 | 5303001399 | Gasket-freezer |
|
- | |||||
| 11 | 5349007923 | Rack-door (3) |
|
- | |||||
| 12 | 5317689201 | End Cap - Lh (3) |
|
- | |||||
| 13 | G17288504 | Tray-egg |
|
- | |||||
| 14 | 5318646902 | Panel-inner Refr |
|
- | |||||
| 15 | 5303001398 | Gasket-refrigerator |
|
- | |||||
| 16 | 5308002748 | Screw |
|
- | |||||
| 3A | 5308013645 | Screw-handle (4) (non-illustrated) |
|
- |
