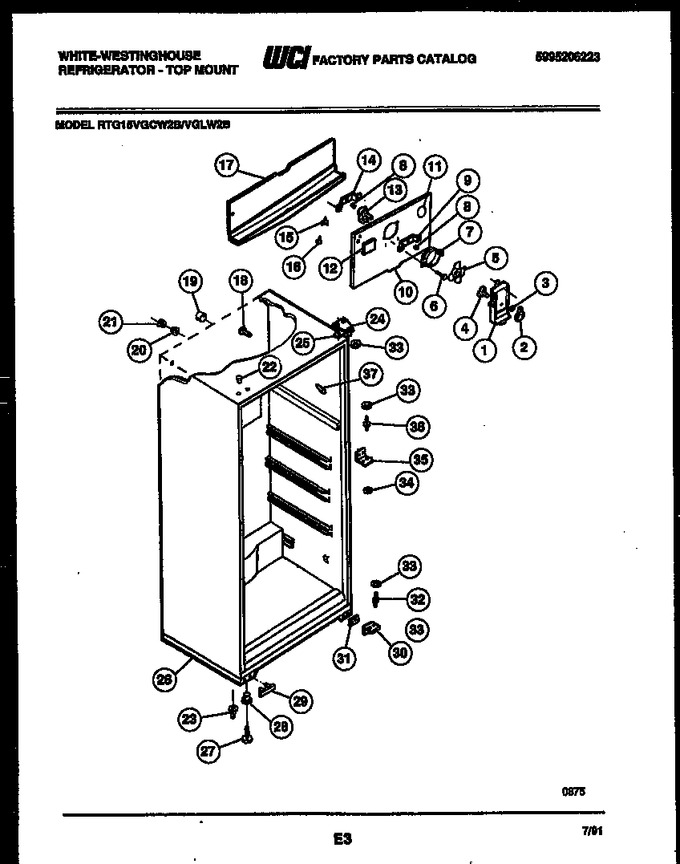

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205688		Cover-fan		Appelez-nous	-
2	5316266313		Knob-damper Control		Appelez-nous	-
3	5303001028		Push-nut		Appelez-nous	-
4	5303001331		Damper, Fan				$ 31.71
5	5308000010		Fan Blade			Immediately	$ 49.03
6	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
7	5308000124		Orifice Ring				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket - Front		Appelez-nous	-
10	3001358		Cover, Evaporator Coil		Appelez-nous	-
11	5303208309		Plug, Short Test Hole				$ 45.50
12	5308013636		Plug, Decorative		Appelez-nous	-
13	5300165207		Motor-fan		Appelez-nous	-
14	5303205119		Bracket, Rear		Appelez-nous	-
15	5308000107		Bracket-connector				$ 33.23
16	5303210353		Screw-bracket Mtg		Appelez-nous	-
17	08003638		Drain Trough		Appelez-nous	-
18	5308000097		Support, Coil Cover (2)		Appelez-nous	-
19	5303001198		Tube, Rubber (2)		Appelez-nous	-
20	5303001286		Ferrule-inner		Appelez-nous	-
21	5303001287		Ferrule-outer		Appelez-nous	-
22	5303001388		Plug, White (2)				$ 2.60
23	5303001386		Drain Tube		Appelez-nous	-
24	5308012843		Hinge-top				$ 71.47
25	5303001037		Shim, Top Hinge				$ 12.39
26	5303006086		Cabinet Base		Appelez-nous	-
27	5303205540		Leveling Screw (2)		Appelez-nous	-
28	5308003584		Anchor Nut (2)				$ 7.30
29	5303001478		Plug, Hinge Hole		Appelez-nous	-
30	5308010251		Bracket-bttm Hinge		Appelez-nous	-
31	5303001323		Shim, Bottom Hinge		Appelez-nous	-
32	5303001321		Pin, Bottom Hinge				$ 17.25
33	5308000007		Washer-1/4 Nylon (3)		Appelez-nous	-
34	5303001038		Washer-5/16 Nylon (2)				$ 13.34
35	5303001369		Bracket- Center Hinge		Appelez-nous	-
36	5308000184		Pin-center Hinge				$ 8.87
37	5308003582		Corner Trim-white		Appelez-nous	-
*48110	5308016571		Plug-freezer Liner (8)				$ 4.79
10A	5303209814		Nut U, Type (2) (non-illustrated)		Appelez-nous	-
10B	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
1A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
1B	G000187640		Label-fan Cover		Appelez-nous	-
24A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
24B	5308012296		Plate-tapping (2) (non-illustrated)				$ 47.44
30A	5303001320		Screw-hinge Mtg (2) (non-illustrated)		Appelez-nous	-
31A	5308012296		Tapping Plate (2) (non-illustrated)				$ 47.44
35A	5308012258		Screw				$ 2.25
