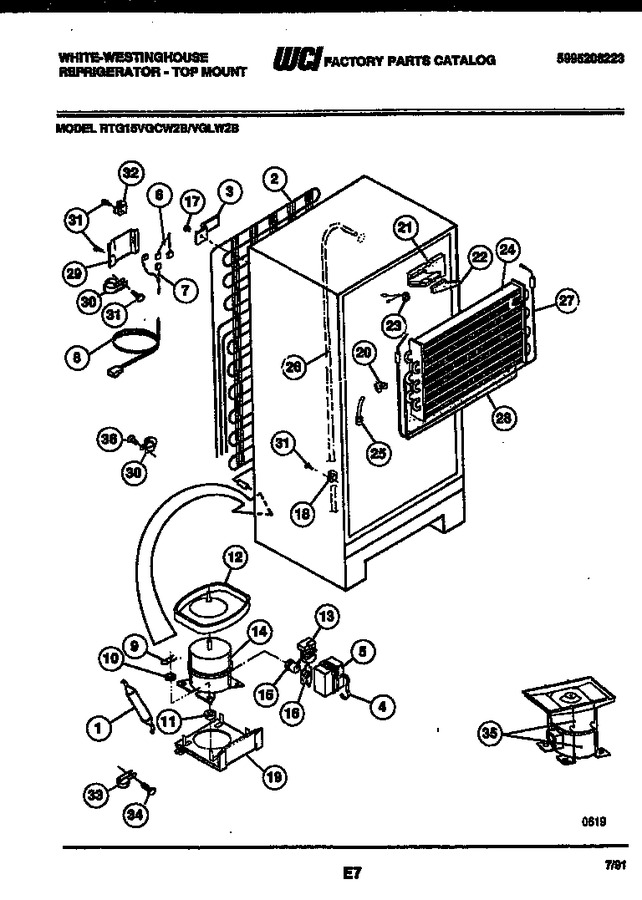

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 2 | 5303015938 | Condenser |
|
- | |||||
| 3 | 5303001342 | Bracket-condenser Mounting (4) |
|
- | |||||
| 4 | 5303006412 | Strap-terminal Cover |
|
- | |||||
| 5 | 5303006411 | Cover, Terminal |
|
- | |||||
| 6 | 5303015682 | Wiring Harness-control |
|
- | |||||
| 7 | 5308013114 | Wiring Harness-compr |
|
- | |||||
| 8 | 5308013389 | Service Cord |
|
- | |||||
| 9 | 5308003596 | Clip (3) |
|
$ 6.62 | |||||
| 10 | 5308003633 | Washer (3) |
|
$ 35.67 | |||||
| 11 | 5308008778 | Grommet (4) |
|
- | |||||
| 12 | 5300184715 | Defrost Pan |
|
- | |||||
| 13 | 5303211376 | Relay |
|
- | |||||
| 14 | 5303916804 | Compressor With Electricals |
|
- | |||||
| 15 | 5303270973 | Overload |
|
- | |||||
| 16 | 5303017762 | Clip-overload |
|
- | |||||
| 17 | 5308000039 | Screw |
|
- | |||||
| 18 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 19 | 5308009596 | Plate-compressor Mtg |
|
- | |||||
| 20 | 5308017227 | Insulation Block, Lh |
|
- | |||||
| 21 | 5308013648 | Insulation Block, Rh |
|
- | |||||
| 22 | 5303007287 | Insulation Plug, Rh |
|
- | |||||
| 23 | 5303917954 | Thermostat-defrost (Replaces: 5316269001) |
|
Immediately | $ 30.47 | ||||
| 24 | 5303272044 | Evaporator Coil |
|
- | |||||
| 25 | 5308000110 | Strap, Evaporator (2) |
|
Immediately | $ 59.82 | ||||
| 26 | 5303201079 | Heat Exchanger |
|
- | |||||
| 27 | 5316664602 | Heater-defrost |
|
- | |||||
| 28 | 5316651102 | Insulation-evaporator |
|
$ 53.04 | |||||
| 29 | 5303001197 | Cover-wiring |
|
- | |||||
| 30 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 31 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 32 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 33 | 3201679 | Clamp-drier |
|
- | |||||
| 34 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 35 | 5303916001 | Pan Retainer Kit |
|
$ 78.75 | |||||
| 36 | 5300141713 | Screw-8-32 X 5/8 Hex |
|
- | |||||
| *48125 | 5303270512 | Nut (2) |
|
- | |||||
| *48125 | 5308013390 | Bracket-grounding |
|
- | |||||
| *48125 | 5300189378 | Hot Tube Repair Kit |
|
- | |||||
| 12A | 5303001348 | Lock Nut-pan (non-illustrated) |
|
$ 2.73 | |||||
| 12B | 5308017610 | Sound Tape-pan (non-illustrated) |
|
- | |||||
| 3A | 5308009617 | Washer - No. 10 Ext Tooth Lock (2) (non-illustrated) |
|
- |
