SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:

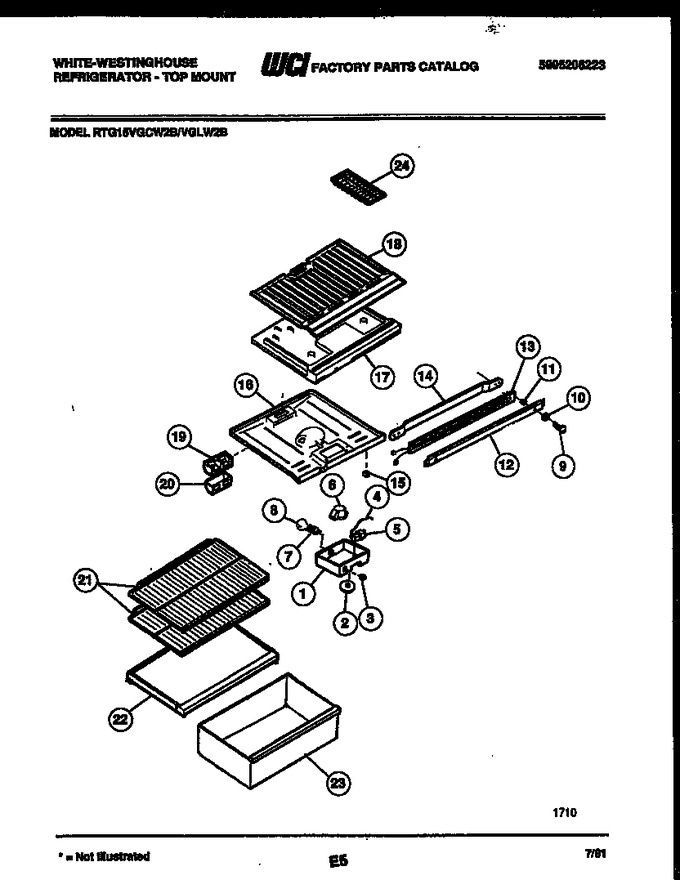

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5317672202 | Control Box |
|
- | |||||
| 2 | 5308010011 | Knob-temp Control |
|
- | |||||
| 3 | 3202734 | Button Plug |
|
- | |||||
| 4 | 5303916855 | Sleeve-plastic |
|
$ 60.96 | |||||
| 5 | 5308015762 | Control, Temperature |
|
- | |||||
| 6 | 5303007517 | Timer-defrost |
|
- | |||||
| 7 | 5308000129 | Light Socket |
|
$ 62.16 | |||||
| 8 | 5308017515 | Light Bulb |
|
- | |||||
| 9 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 10 | 5308003607 | Washer, No. 10 Steel (2) |
|
$ 1.00 | |||||
| 11 | 3001370 | Spacer, Mullion (2) |
|
- | |||||
| 12 | 5303200465 | Mullion, White |
|
- | |||||
| 13 | 5303270975 | Heater-mullion |
|
- | |||||
| 14 | 5308003604 | Strap, Mullion Mtg |
|
- | |||||
| 15 | 5309918806 | Light Switch |
|
Immediately | $ 21.97 | ||||
| 16 | 5303015448 | Top Panel-refrig |
|
- | |||||
| 17 | 5308000759 | Divider, Styrofoam |
|
- | |||||
| 18 | 5308000748 | Bottom Panel-freezer |
|
- | |||||
| 19 | 5308000071 | Air Deflector |
|
- | |||||
| 20 | 5303001546 | Cover, Deflector |
|
- | |||||
| 21 | 53172117303 | Shelf-refr (2) |
|
- | |||||
| 22 | 5308000749 | Cover-pan |
|
- | |||||
| 23 | 5316297334 | Pan-storage |
|
- | |||||
| 24 | 5303001324 | Ice Tray (2) |
|
- | |||||
| 16A | 5303001380 | Screw |
|
- | |||||
| 17A | 5303015682 | Wiring Harness-divider (non-illustrated) |
|
- | |||||
| 1A | G000180037 | Label-control Box (non-illustrated) |
|
- | |||||
| 1B | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 5A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 6A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 7A | 5308013113 | Shield-light Socket (non-illustrated) |
|
- |
