02 - Inner Door Parts


03 - Inner Tub Parts


04 - Motor And Pump Parts


05 - Console And Control Parts


06 - Cam


07 - Cabinet Parts


08 - Racks And Trays


09 - Top Parts

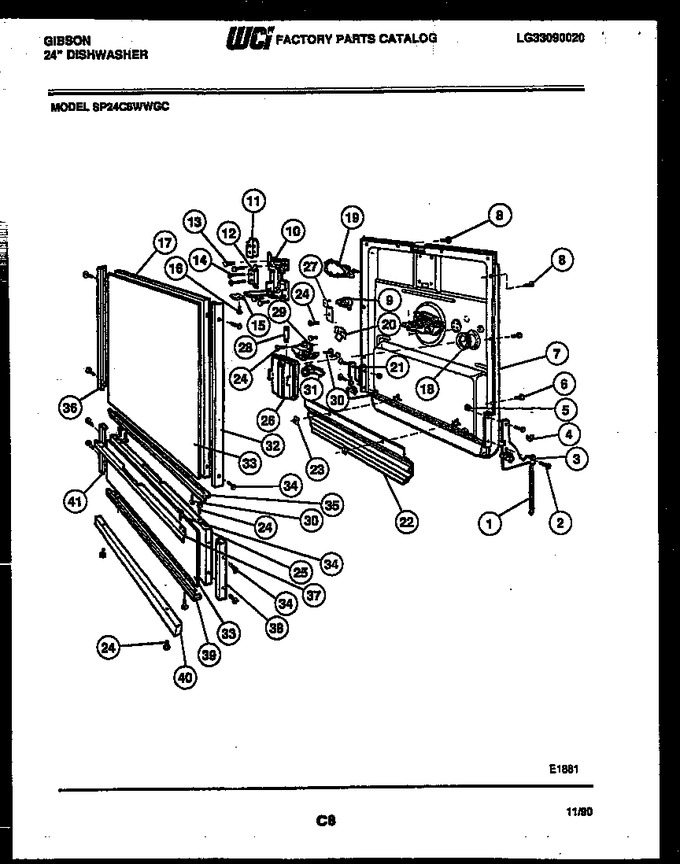

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300809360		Door Spring				$ 47.67
2	5300803311		Screw-10-24 X 5/8`` (4)		Appelez-nous	-
3	5300805681		Arm Assembly-rh				$ 98.70
4	5300805884		Spring Pad (2)		Appelez-nous	-
5	5300808470		Nut (4)		Appelez-nous	-
6	5300809055		Screw-8 X 7/16``				$ 1.21
7	5300809054		Door Assembly		Appelez-nous	-
8	5300808749		Screw-8 X 5/8``(6)		Appelez-nous	-
9	5300808956		Thermostat (water Heat)				$ 3.78
10	5300807016		Latch Assembly		Appelez-nous	-
11	5300807450		Switch Cover		Appelez-nous	-
12	5300807043		Switch		Appelez-nous	-
13	5300809029		Screw-8a X 5/8`` (4)		Appelez-nous	-
14	5300808618		Screw-6-32 X 1`` (2)		Appelez-nous	-
15	5300808712		Latch Knob				$ 31.71
16	3202538		Screw-8-32 X 5/16`` (4)		Appelez-nous	-
17	5300808523		Door Panel-almond		Appelez-nous	-
17	5300807262		Door Panel-white		Appelez-nous	-
18	5300805631		Dispenser Grommet				$ 6.29
19	5300809075		Wire Tie		Appelez-nous	-
20	3018047		Grounding Terminal		Appelez-nous	-
21	5300805682		Counterbalance Arm Assembly-lh				$ 93.56
22	5300809025		Baffle - Seal				$ 56.49
23	3202540		Speednut (2)		Appelez-nous	-
24	154419403		Screw-8 X 3/8`` (8)   (Replaces: 5300808658)				$ 13.10
25	5300808526		Access Panel-almond		Appelez-nous	-
25	5300809108		Access Panel-white		Appelez-nous	-
26	5300806753		Body Assembly				$ 69.93
27	5300809097		Thermostat Retainer		Appelez-nous	-
28	5300809898		Plunger				$ 36.49
29	5300809109		Bi-metal Assembly				$ 38.48
30	5300807501		Screw-8 X 1/2`` (2)		Appelez-nous	-
31	5300807673		Fill Plug		Appelez-nous	-
32	3018044		Door Panel Trim-rh		Appelez-nous	-
33	5300808908		Door & Access Panel Inserts-almond		Appelez-nous	-
33	5300808914		Door & Access Panel Inserts-white		Appelez-nous	-
33	5300808804		Door & Access Panel Inserts-black		Appelez-nous	-
33	5303809196		Door & Access Panel Inserts-toast		Appelez-nous	-
33	5303808909		Door & Access Panel Inserts-avocado		Appelez-nous	-
33	5300808912		Door & Access Panel Inserts-wheat		Appelez-nous	-
33	5300808755		Door & Access Panel Inserts-platinum		Appelez-nous	-
33	5300807644		Door & Access Panel Inserts-coffee		Appelez-nous	-
34	5300809696		Screw-8 X 3/8`` (10)		Appelez-nous	-
35	5300807347		Door Panel Trim-bottom		Appelez-nous	-
36	5300808918		Door Panel Trim-lh		Appelez-nous	-
37	5300808346		Access Panel Trim-top		Appelez-nous	-
38	3018185		Access Panel Trim-rh		Appelez-nous	-
39	5300808521		Access Panel Trim-bottom		Appelez-nous	-
40	5300808522		Toe Plate		Appelez-nous	-
41	3018182		Access Panel Trim-lh		Appelez-nous	-
