Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 S000275602 Push Buttons (5) Appelez-nous -
2 5300809783 Timer Knob Appelez-nous -
3 5300809784 Lens Appelez-nous -
4 5300805324 Screw-10-32 X 27/32`` (2) Appelez-nous -
5 5300809576 Console Panel Appelez-nous -
6 5303210210 Light Assembly-delay Appelez-nous -
7 5300809317 Light Assembly-pilot Appelez-nous -
8 240396801 Clamp (2)   (Replaces: 5300808442) Special Order $ 19.13

9 5300809175 Screw 8b X 7/16`` Appelez-nous -
10 5300808483 Terminal Board Assembly Appelez-nous -
11 5300809885 Terminal-connector Block Appelez-nous -
12 5300809883 Connector Block- 18 Pin Appelez-nous -
13 5300809662 Timer Appelez-nous -
14 5300809785 Overlay Panel Appelez-nous -
15 5300809786 Selector Switch Appelez-nous -
16 5300809787 Switch-bracket Appelez-nous -
17 5300807141 Screw-6-30 X 3/8`` (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

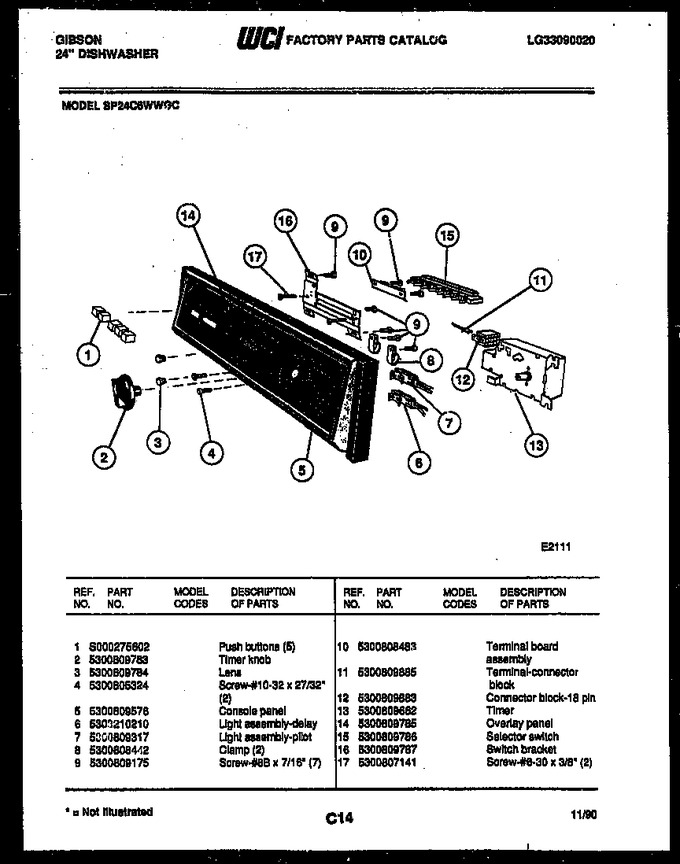

Diagram for SP24C6WWGC
