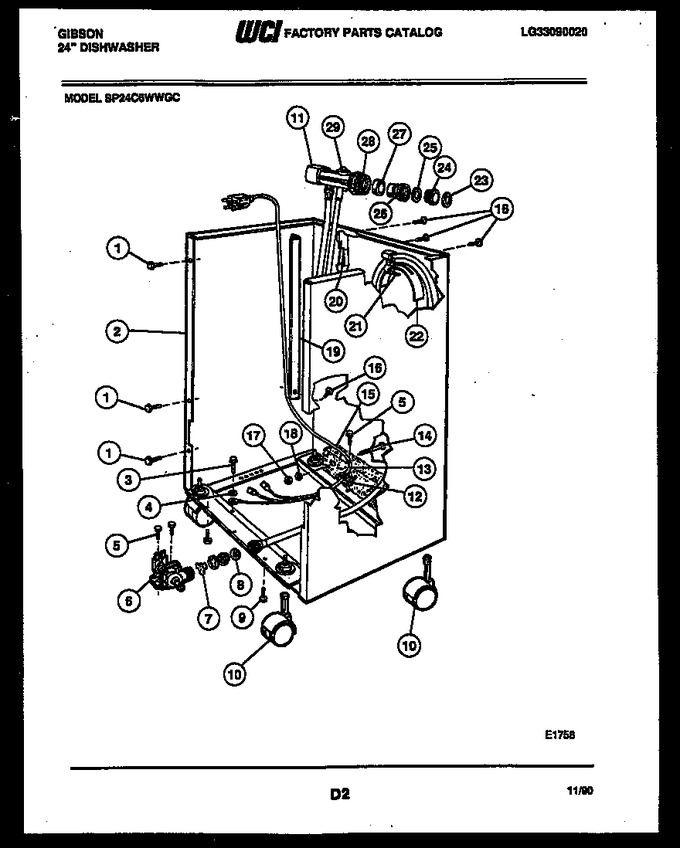

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300806539 | Screw (4) |
|
- | |||||
| 2 | 5300808533 | Frame-white |
|
- | |||||
| 2 | 5300808537 | Frame-almond |
|
- | |||||
| 3 | 5300807951 | Screw |
|
- | |||||
| 4 | 5300807373 | Washer |
|
- | |||||
| 5 | 5300807004 | Screw (3) |
|
- | |||||
| 6 | 5300808667 | Water Valve Kit-includes 14 |
|
- | |||||
| 7 | 5300808432 | Washer-flow |
|
- | |||||
| 8 | 5300800787 | Washer |
|
- | |||||
| 9 | 154419403 | Screw (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 10 | 5300809661 | Casters |
|
- | |||||
| 11 | 5300807496 | Hose & Coupler Assy |
|
- | |||||
| 12 | 5300804426 | Clamp |
|
- | |||||
| 13 | 5300805046 | Power Cord |
|
- | |||||
| 14 | 5300808612 | Screw |
|
- | |||||
| 15 | 5300808615 | Weight |
|
- | |||||
| 16 | 3018065 | Screw |
|
- | |||||
| 17 | 5300808661 | Nut (2) |
|
- | |||||
| 18 | 5300808613 | Washer (2) |
|
- | |||||
| 19 | 5300808120 | Guard - Hose |
|
- | |||||
| 20 | 5300805859 | Guide - Hose |
|
- | |||||
| 21 | 5300806142 | Clamp (2) |
|
- | |||||
| 22 | 5300806143 | Support - Hose |
|
- | |||||
| 23 | 5300803393 | Washer |
|
- | |||||
| 24 | 5300800782 | Adaptor - Screw |
|
- | |||||
| 25 | 5300803392 | Washer |
|
- | |||||
| 26 | 5300803149 | Coupler Adaptor |
|
- | |||||
| 27 | 5300806584 | Rubber Sleeve Seal |
|
$ 37.49 | |||||
| 28 | 5300809139 | Collar Repair Kit |
|
- | |||||
| 29 | 5300807498 | Pressure Relief Valve Kit |
|
- |
