New Model Search:

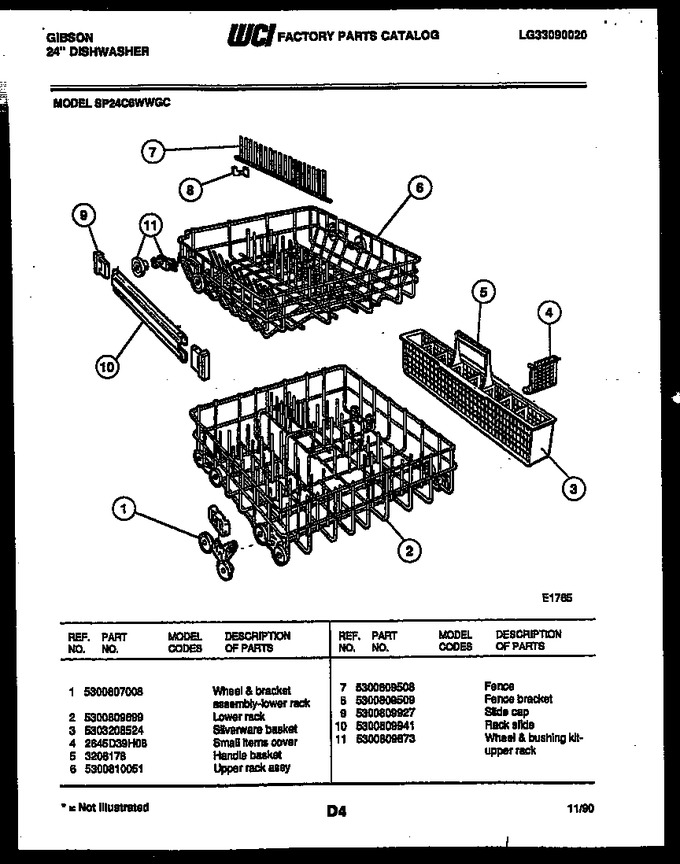

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300807008 | Wheel & Bracket Assembly-lower Rack |
|
- | |||||
| 2 | 5300809699 | Lower Rack |
|
- | |||||
| 3 | 5304509753 | Silverware Basket (Replaces: 5303208524) |
|
Immediately | $ 36.87 | ||||
| 4 | 2645D39H08 | Small Items Cover |
|
- | |||||
| 5 | 3206178 | Handle - Basket |
|
- | |||||
| 6 | 5300810051 | Upper Rack Assy |
|
- | |||||
| 7 | 5300809508 | Fence |
|
- | |||||
| 8 | 5300809509 | Fence Bracket |
|
$ 5.36 | |||||
| 9 | 5300809927 | Slide Cap |
|
Immediately | $ 3.69 | ||||
| 10 | 5300809941 | Rack Slide |
|
- | |||||
| 11 | 5300809873 | Wheel & Bushing Kit-upper Rack |
|
$ 32.80 |
