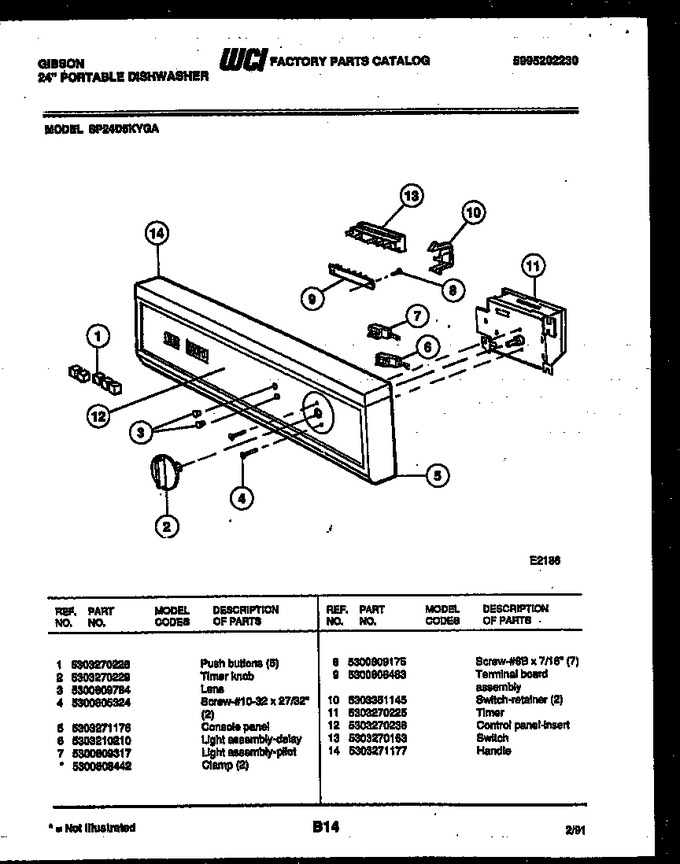

02 - Console And Control Parts


03 - Cam


04 - Door Parts


05 - Tub And Frame Parts


06 - Motor Pump Parts


07 - Cabinet Parts


08 - Top Parts


09 - Racks And Trays


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303270226		Push Buttons (5)		Appelez-nous	-
2	5303270229		Timer Knob		Appelez-nous	-
3	5300809784		Lens		Appelez-nous	-
4	5300805324		Screw-10-32 X 27/32`` (2)		Appelez-nous	-
5	5303271176		Console Panel		Appelez-nous	-
6	5303210210		Light Assembly-delay		Appelez-nous	-
7	5300809317		Light Assembly-pilot		Appelez-nous	-
8	5300809175		Screw 8b X 7/16``		Appelez-nous	-
9	5300808483		Terminal Board Assembly		Appelez-nous	-
10	5303351145		Switch Retainer (2)		Appelez-nous	-
11	5303270225		Timer		Appelez-nous	-
12	5303270236		Control Panel-insert		Appelez-nous	-
13	5303270163		Switch		Appelez-nous	-
14	5303271177		Handle		Appelez-nous	-
7A	240396801		Clamp (2) (non-illustrated)   (Replaces: 5300808442)				$ 19.13

    View Diagram in Separate Window       Print Part List
