02 - Console And Control Parts
03 - Cam
04 - Door Parts
05 - Tub And Frame Parts

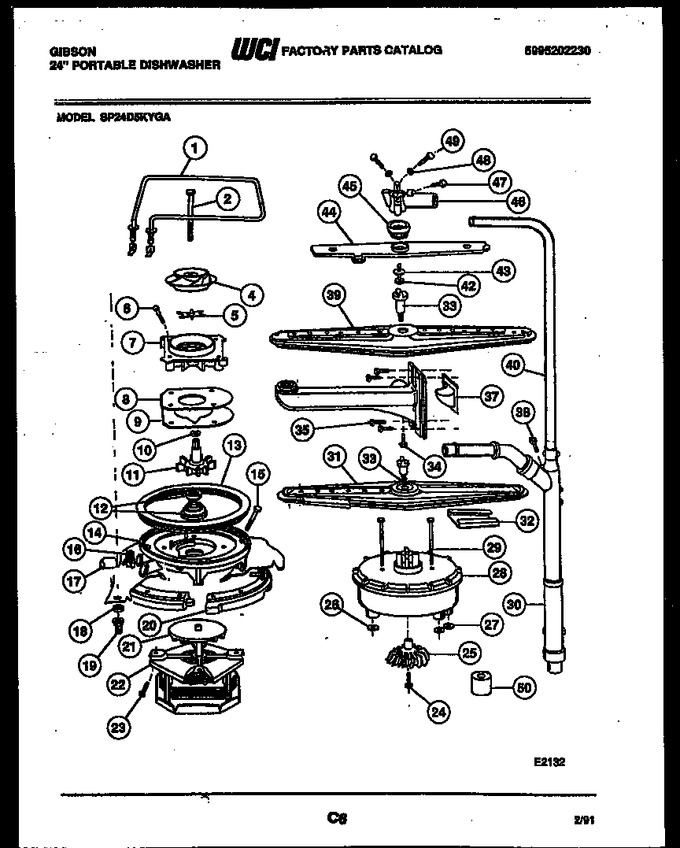

06 - Motor Pump Parts
07 - Cabinet Parts
08 - Top Parts
09 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300809004 | Heater (includes 18 & 19) |
|
- | |||||
| 2 | 5300806353 | Screw |
|
$ 12.06 | |||||
| 4 | 5300809918 | Upper Impeller |
|
$ 83.45 | |||||
| 5 | 3100003901 | Macerator |
|
- | |||||
| 6 | 5300807359 | Screw |
|
- | |||||
| 7 | 5300809921 | Spacer Plate |
|
$ 12.39 | |||||
| 8 | 5300809006 | Pump Plate |
|
$ 45.94 | |||||
| 9 | 5300809007 | Pump Gasket |
|
$ 18.06 | |||||
| 10 | 5300806521 | O-ring |
|
$ 32.42 | |||||
| 11 | 5300809910 | Pump Impeller Kit-includes 4-5-9-11 |
|
- | |||||
| 12 | 5300803903 | Water Seal |
|
$ 109.86 | |||||
| 13 | 5300809008 | Pump Gasket |
|
$ 4.99 | |||||
| 14 | 5300809939 | Pump Housing |
|
$ 88.83 | |||||
| 15 | 5300807268 | Screw |
|
$ 5.93 | |||||
| 16 | 5300808186 | Hose Clamp |
|
- | |||||
| 17 | 5300805923 | Recirculating Hose |
|
- | |||||
| 18 | 5300806833 | Insulating Washer |
|
$ 5.34 | |||||
| 19 | 154106202 | Heater Nut (Replaces: 5300806834) |
|
Immediately | $ 18.32 | ||||
| 20 | 5300807712 | Pump Clamp |
|
- | |||||
| 21 | 5300809366 | Watershield Assy |
|
$ 2.26 | |||||
| 22 | 5300809985 | Motor Assy |
|
- | |||||
| 23 | 5300809022 | Screw |
|
- | |||||
| 24 | 5300809073 | Screw |
|
- | |||||
| 25 | 5300809014 | Diffuser |
|
- | |||||
| 26 | 5300809016 | O-ring |
|
$ 5.83 | |||||
| 27 | 5300809015 | O-ring |
|
$ 6.09 | |||||
| 28 | 5300809011 | Filter Body Assy |
|
- | |||||
| 29 | 5300809012 | Screw |
|
$ 8.03 | |||||
| 30 | 5300808805 | Delivery Tube Assy Kit |
|
- | |||||
| 31 | 5303943014 | Spray Arm Assy |
|
- | |||||
| 32 | 5300809938 | Spray Arm Shield |
|
$ 37.05 | |||||
| 33 | 5300809018 | Spray Arm Bolt |
|
- | |||||
| 34 | 5300806656 | Screw |
|
- | |||||
| 35 | 5300805106 | Screw |
|
- | |||||
| 36 | 5300809019 | Delivery Arm |
|
$ 68.99 | |||||
| 37 | 5300805781 | Delivery Arm Plug |
|
- | |||||
| 38 | 5300806656 | Screw |
|
- | |||||
| 39 | 5300809021 | Spray Arm Assy |
|
$ 34.07 | |||||
| 40 | 5300807224 | Supply Tube |
|
$ 38.22 | |||||
| 42 | 5300808466 | Screw |
|
$ 6.01 | |||||
| 43 | 5308000186 | Washer (Replaces: 5300808465) |
|
Immediately | $ 6.02 | ||||
| 44 | 5300808463 | Spray Arm Seal Assy |
|
- | |||||
| 45 | 5300808462 | Distributor Bushing |
|
$ 13.86 | |||||
| 46 | 5300808464 | Distributor |
|
$ 5.34 | |||||
| 47 | 5300806976 | Screw |
|
- | |||||
| 48 | 5300809044 | Sealing Washer |
|
- | |||||
| 49 | 5300806901 | Screw |
|
- | |||||
| 50 | 5300803923 | Seal Installation Tool |
|
$ 57.38 |
