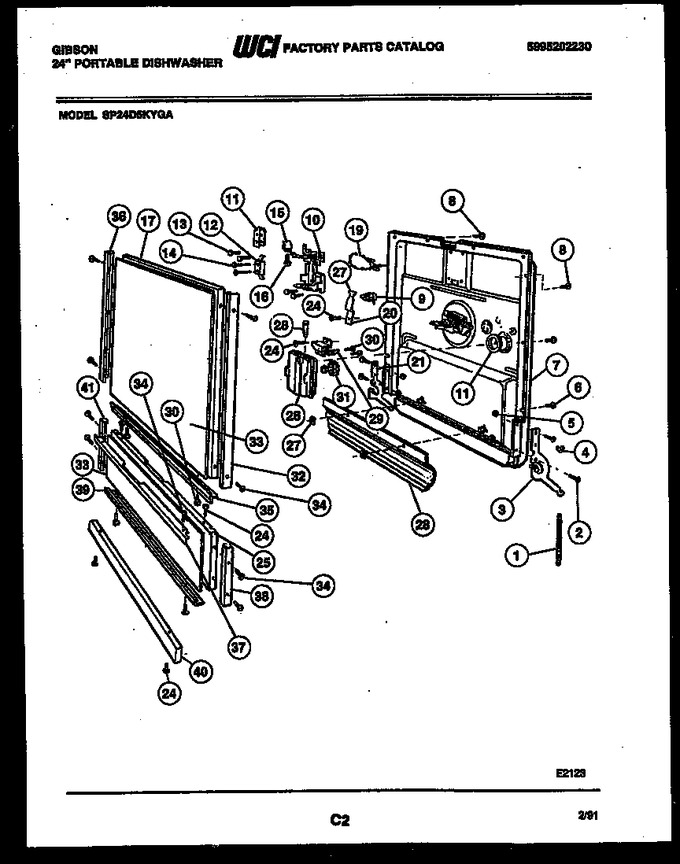

02 - Console And Control Parts
03 - Cam
04 - Door Parts
05 - Tub And Frame Parts
06 - Motor Pump Parts
07 - Cabinet Parts
08 - Top Parts
09 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300809360 | Door Spring |
|
$ 47.67 | |||||
| 2 | 5300803311 | Screw-10-24 X 5/8`` (4) |
|
- | |||||
| 3 | 5300805681 | Arm Assembly-rh |
|
$ 98.70 | |||||
| 4 | 5300805884 | Spring Pad (2) |
|
- | |||||
| 5 | 5300808470 | Nut (4) |
|
- | |||||
| 6 | 5300809055 | Screw-8 X 7/16`` |
|
$ 1.21 | |||||
| 7 | 5300809054 | Door Assembly |
|
- | |||||
| 8 | 5300808749 | Screw-8 X 5/8``(6) |
|
- | |||||
| 9 | 5300114003 | Thermostat-water Heat |
|
- | |||||
| 10 | 5303271234 | Latch Assembly |
|
- | |||||
| 11 | 5300807450 | Switch Cover |
|
- | |||||
| 12 | 5300807043 | Switch |
|
- | |||||
| 13 | 5300809029 | Screw-8a X 5/8`` (4) |
|
- | |||||
| 14 | 5300808618 | Screw-6-32 X 1`` (2) |
|
- | |||||
| 15 | 5300808712 | Latch Knob |
|
$ 31.71 | |||||
| 16 | 5300808715 | Screw-8-32 X 5/16`` (4) |
|
- | |||||
| 17 | 5300807262 | Door Panel-white |
|
- | |||||
| 18 | 5300805631 | Dispenser Grommet |
|
$ 6.29 | |||||
| 19 | 5300809075 | Wire Tie |
|
- | |||||
| 20 | 5300807213 | Grounding Terminal |
|
- | |||||
| 21 | 5300805682 | Arm Assembly-lh |
|
$ 93.56 | |||||
| 22 | 5300809025 | Baffle - Seal |
|
$ 56.49 | |||||
| 23 | 5300809695 | Speednut (2) |
|
- | |||||
| 24 | 154419403 | Screw-8 X 3/8`` (8) (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 25 | 5300809108 | Access Panel-white |
|
- | |||||
| 26 | 5300806753 | Body Assembly |
|
$ 69.93 | |||||
| 27 | 5300809097 | Thermostat Retainer |
|
- | |||||
| 28 | 5300809898 | Plunger |
|
$ 36.49 | |||||
| 29 | 5300809109 | Bi-metal Assembly |
|
$ 38.48 | |||||
| 30 | 5300807501 | Screw-8 X 1/2`` (2) |
|
- | |||||
| 31 | 5300807673 | Fill Plug |
|
- | |||||
| 32 | 5300808990 | Door Panel Trim-rh |
|
- | |||||
| 33 | 5300808908 | Door & Access Panel Inserts-almond & Black |
|
- | |||||
| 34 | 5300809696 | Screw-8 X 3/8`` (10) |
|
- | |||||
| 35 | 5300807347 | Door Panel Trim-bottom |
|
- | |||||
| 36 | 5300808991 | Door Panel Trim-lh |
|
- | |||||
| 37 | 5300808346 | Access Panel Trim-top |
|
- | |||||
| 38 | 5300808103 | Access Panel Trim-rh |
|
- | |||||
| 39 | 5300808521 | Access Panel Trim-bottom |
|
- | |||||
| 40 | 5300808522 | Toe Plate |
|
- | |||||
| 41 | 5300808104 | Access Panel Trim-lh |
|
- |
